PE Pipe Extrusion Production Line Multiple stock

2025-01-03

New Technology HDPE/PP/PE Large Diameter Water Supply Pipe and Gas Supply Pipe Making Machine

Plastic PP PPR Water Supply Pipe Making Machine
New Technology Small Diameter HDPE/PP/PE Water Supply Pipe and Gas Supply Pipe Making Machine
High Efficient Plastic PP PPR Water Supply Pipe Making Machine
HDPE/PP/ Water Supply and Gas Supply Pipe Extrusion Machine.
HDPE Gas and Water Pressure Pipe Production Equipment Extruding Line (20-110,315,400,560,630,800,1200,1600mm).

1. HDPE/MDPE fuel gas/water supply pipe features:
This Large diameter HDPE/MDPE fuel gas/water supply pipe extrusion line is mainly used for producing large diameter HDPE/MDPE pipe. The pipe has some excellent features such as heating resistant, aging resistant, high mechanical strength, environmental stress cracks resistant, good creep resistant, etc. It is a preferred gas conduit for ductwork systems between city and its suburb, water supply in city.

2. Production line features:

Sj-75/38 High Efficient PE Water Supply and Draiange Pipe Machine Production Line Machinery Extruder

Extruders: Plastic Single-screw extruders for HDPE/PP, optinal SJ45, SJ55, SJ65,SJ75, SJ90,SJ100,SJ120,SJ150, L/D 33:1 or 38:1.
Extrusion capacity from 40kg/h to 1500kg/h.
High efficiency extruder is designed for HDPE pipe, equipped with reducer which is high speed and low noise, feeding section with cooling unit and reversing spiral groove, different pitch undulant screw which allows great output, lower melting temperature, and lower energy consumption.

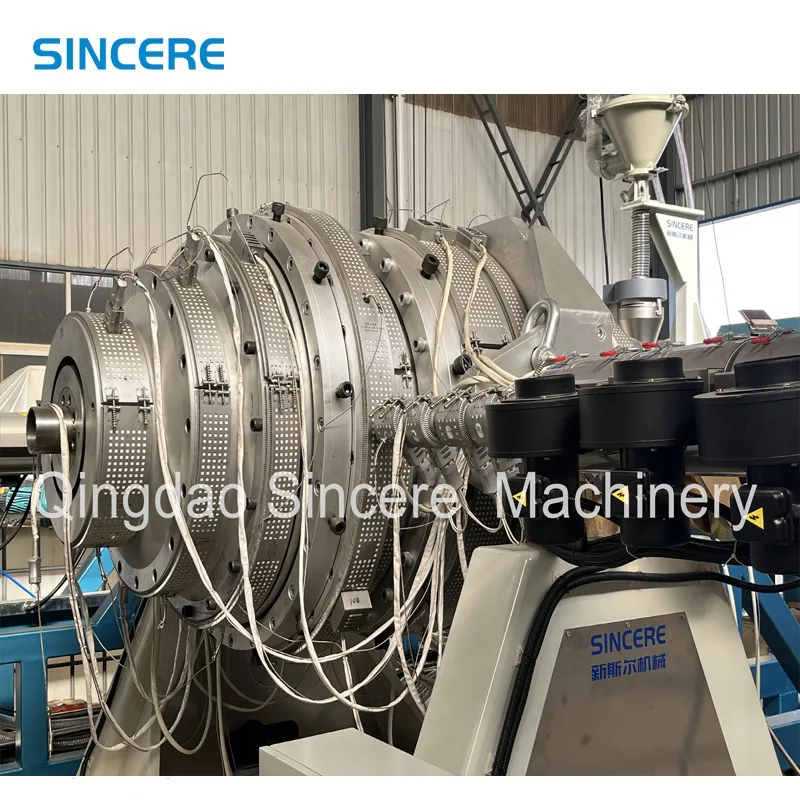

Extrusion die-head
Single layer extrusion die mould, double layers extrusion die moudld, three-layers extrusion molds.
Distributed spiral composite extrusion die-head ensures the melting pressure and flux even and stable, the surface of pipe smooth and glossy.

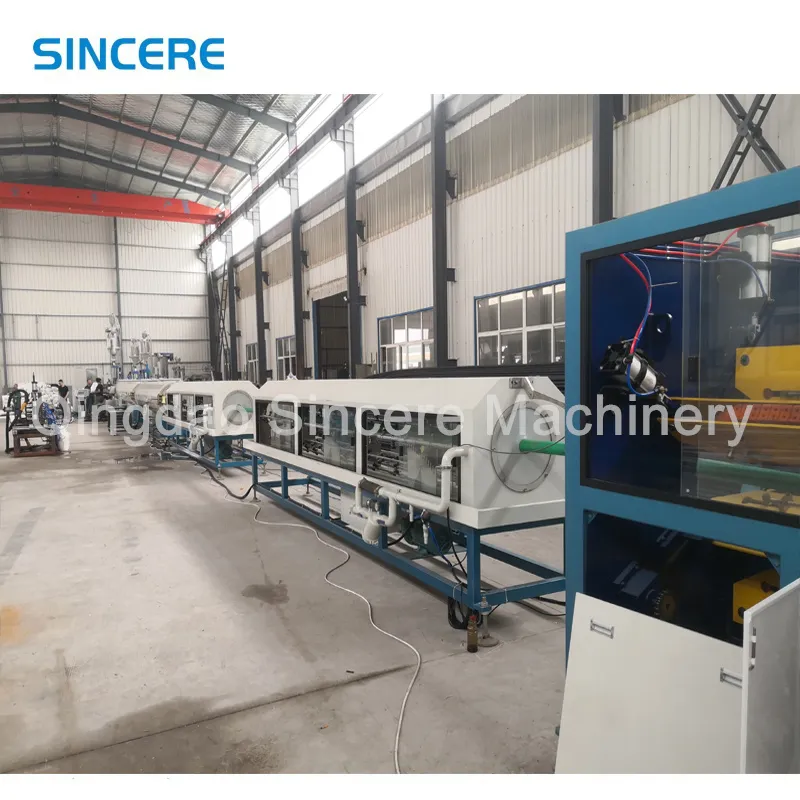

Vacuum calibration water tanks, and spray water cooling tank: made of stainless steel ensures precise calibration and fast cooling.

Multi claws haul-off unit: Chipless cutting machine:
speed adjusted by frequency inverter or by servo-motors. Be able to cut large diameter and thick wall pipe, servo-motors
Haulling speed: 0-30m/min.

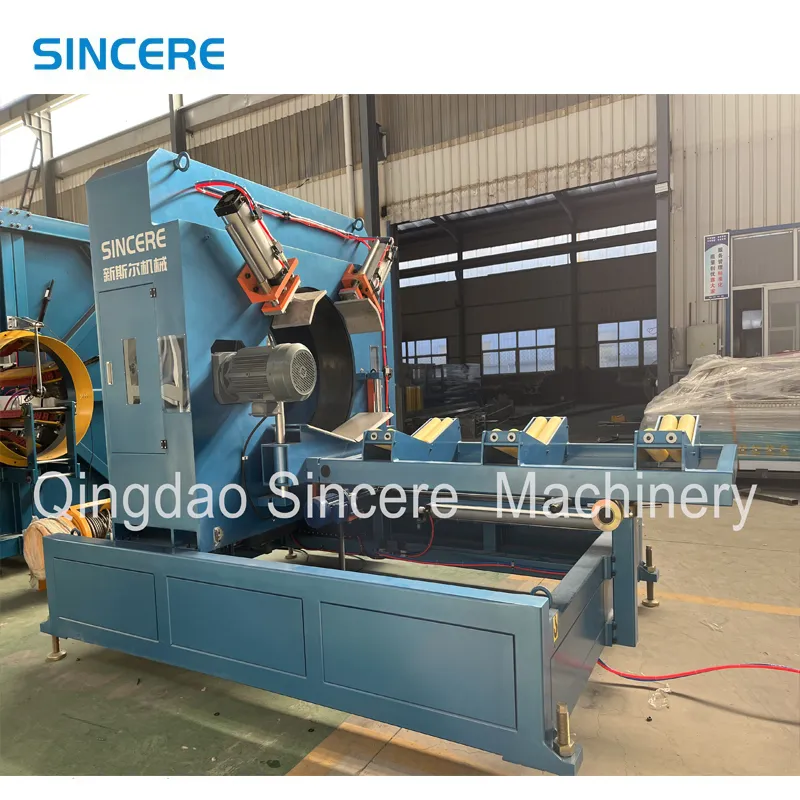

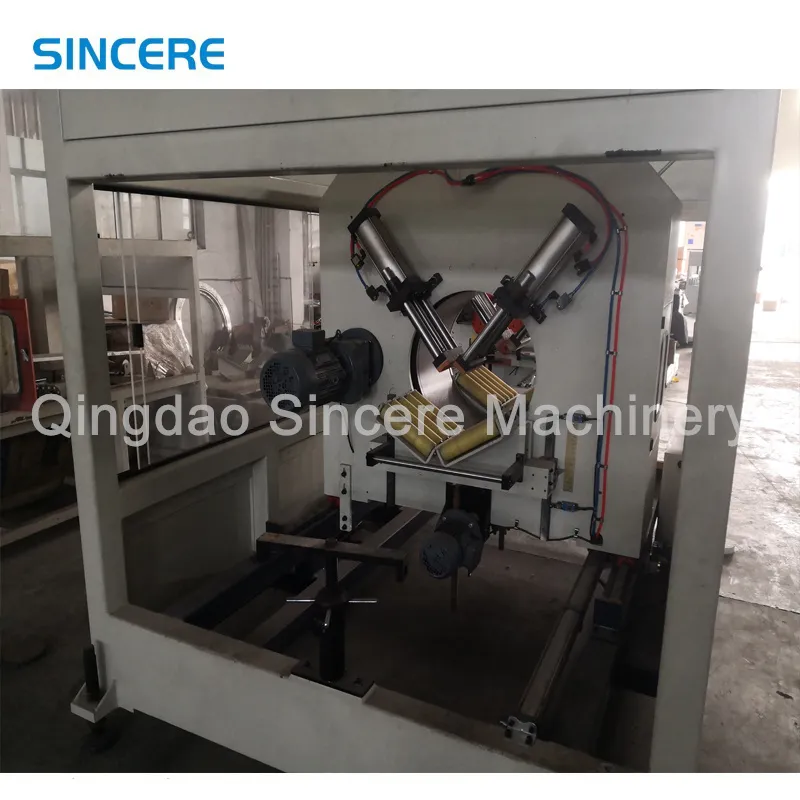

Cutting machine

1.No-dust Cutter:The chip-free cutting machine can keep the production environment clean and noiseless. The incision is smooth and neat, which improves the appearance quality of the pipe.
2.Planetary Cutter:Planetary cutting machine with special hard fit blade, suitable for large diameter thick wall pipe cutting

3.Final product

4. Technical parameters:

Model	Pipe Diameters(mm)	Supporting extruder (33:1 or 38:1)	Extrusion capacity(kgh)	Total Installed Power(kw)
SG-63	16-63	SJ6533 SJ2525	120-180	110
SG-110	16-110	SJ6533 SJ2525	150-200	130
SG-160	50-160	SJ7533 SJ2525	150-220	150
SG-250	75-250	SJ7533 SJ2525	280-350	280
SG-315	110-315	SJ9033 SJ2525	250-350	350
SG-450	160-450	SJ9033 SJ2525	350-450	400
SG-630	315-630	SJ12033 SJ2525	550-850	550
SG-800	450-800	SJ15033 SJ2525	800-1300	750
SG-1000	600-1000	SJ15033 SJ2525	800-1300	750
SG-1200	800-1200	SJ12033*2 SJ2525	950-1600	950
SG-1600	1000-1600	SJ15033*2 SJ2525	1500-2500	1300

5. Our service
*We can provide customers with perfect installation and use services.
*We can provide customers with satisfactory products according to their needs.
*When problems arise during the use of products, we can provide appropriate solutions.
*The warranty period is one year, except man-damage.
*Welcome to visit our factory and looking forward to win-win cooperation.
6.Our cooperation process:
