PVC Garden Irrigation Hose Making Production Line PVC Braiding Layflat Hose Extrusion Machine

Name: PVC Garden Irrigation Hose Making Production Line PVC Braiding Layflat Hose Extrusion Machine
Brand: Qingdao Sincere Machinery Co., Ltd
SKU: SMPC-63,SMPC-50,SMPC-110
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Sincere

Model Number: SMPC-63,SMPC-50,SMPC-110

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Delivery Time: 7-15 work days

Payment Terms: L/C,T/T

Supply Ability: 20 sets per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Machine Weight:	1500kg	Material:	Plastic
Max. Diameter:	50mm	Machine Dimension:	500010001500mm
Extrusion Speed:	10-50m/min	Cooling Method:	Water Cooling
Max. Output:	100kg/h	Control System:	PLC
Heating Power:	7kw	Motor Power:	11kw
Power Supply:	380V/50Hz	Operating Interface:	Touch Screen
Extrusion Type:	Single Screw

Machine Weight:	1500kg
Material:	Plastic
Max. Diameter:	50mm
Machine Dimension:	500010001500mm
Extrusion Speed:	10-50m/min
Cooling Method:	Water Cooling
Max. Output:	100kg/h
Control System:	PLC
Heating Power:	7kw
Motor Power:	11kw
Power Supply:	380V/50Hz
Operating Interface:	Touch Screen
Extrusion Type:	Single Screw

Product Description

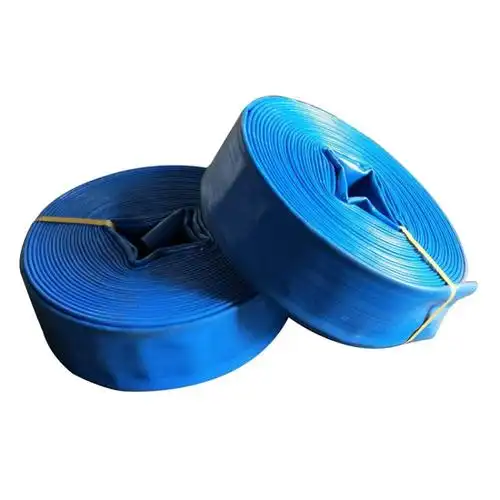

PVC TPU Layflat Hose PVC Fiber Reinforced Soft Hose ProductionLine
PVC High-Strength Coated Water Layflat irrigation Hose Production Line

1. PVC TPU Layflat Hose Applacations:

PVC special high-strength coated water production line is my company absorb and digest foreign advanced technology and self-developed new products, it produces polyester fiber as a reinforcing material, by a special process and extruded plastic extruded PVC material forming Of the hose. The hose produced by the production line has the advantages of good flexibility, high pressure resistance, corrosion resistance, aging resistance, light weight and infinite length.

2.Materials:

100% virgin PVC materials,Non-toxic,Non smell.High tensile polyester yarn.Good quality material make light weight,good flexibility,easy handling. Soft and flexible. Anti abrasion,Anti-corrosion,Anti-aging.

3.TPU / PVC fire/ water hose/ tube/ pipe extrusion production equipment configuration:
single screw inner extrusion system, cooling device, haull-off machine, package yarn machine, single screw outer extrusion system, cooling device, automatic winding system. To achieve a high-speed extrusion and winding uniform work, can configure the corresponding mold can also produce a variety of specifications of the soft shaped pipe/ hose.

4.Technical Parameters

Model	Screw diameter (mm)	LD	Screw and Barrel Material	Extruder Motor (kw)	Center hight (mm)	Hose diameter range (mm)
SJ-55	55	30 or 28	38CrMoAlA	11	1100	1''-2''
SJ-75	75	30 or 28	38CrMoAlA	18.5	1100	2.5''-4''
SJ-90	90	30 or 28	38CrMoAlA	37	1100	4''-6''
SJ-120	120	30 or 28	38CrMoAlA	55	1100	6''-8''

British Measurement	Metric Measurement			W.P.	B.P.	Weight	Maximum elongation at W.P.	Maximum diameter swell at W.P.
	I.D.	Tolerance	Length
inch	mm	mm	m	Mpa	Mpa	kg/roll	%	%

1	25	-0/+1	100	8	25	15	1	6
1-1/4	32	-0/+1	100	8	25	17	1	6
1-1/2	38	-0/+1	100	8	25	20	1	6
2	50	-0/+1	100	7	20	28	1	6
2	50	-0/+1	100	5	16	20	1	6
2-1/2	64	-0/+1	100	5	16	38	1	6
2-1/2	64	-0/+1	100	3	11	27	1	6
3	75	-0/+1	100	3	11	46	1	6
3	75	-0/+1	100	3	11	35	1	6
3-1/2	90	-0/+1	100	3	11	55	1	6
4	102	-0/+1	100	3	11	62	1	6
5	127	-0/+1	100	3	11	71	1	6
6	152	-0/+1	100	3	11	85	1	6
8	200	-0/+1	100	3	11	160	1	6
