Automatic Mpp Plastic Power Pipe Production Line Machine Plastic Mpp Conduit Pipe Extruder Machine

Name: Automatic Mpp Plastic Power Pipe Production Line Machine Plastic Mpp Conduit Pipe Extruder Machine
Brand: Qingdao Sincere Machinery Co., Ltd
SKU: SMPP-63,SMPP160,SMPP110,SMPP300
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Sincere

Model Number: SMPP-63,SMPP160,SMPP110,SMPP300

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Delivery Time: 7-15 work days

Payment Terms: L/C,T/T

Supply Ability: 20 sets per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:

Pipe Diameter:	50mm-160mm	Warranty:	1 Year
Material:	PP/PE	Screw Diameter:	Customized
Extruder Type:	Single Screw Extruder	Control System:	PLC Control
Cooling Method:	Water Cooling	Max Output:	Customized
Main Motor Power:	30kw-200kw	Application:	Electric Wire And Cable Protector

Pipe Diameter:	50mm-160mm
Warranty:	1 Year
Material:	PP/PE
Screw Diameter:	Customized
Extruder Type:	Single Screw Extruder
Control System:	PLC Control
Cooling Method:	Water Cooling
Max Output:	Customized
Main Motor Power:	30kw-200kw
Application:	Electric Wire And Cable Protector

Product Description

Qingdao Sincere Plastic Machine PE PPR PP HDPE PERT Water Supply Pipe Extrusion Line
PERT/PPR Water Supply and Heating Pipe Extrusion Machine.
HDPE/PPR MPP Multi-layers Pipe Co-Extrusion Line (20-110,315,400,560,630,800,1200,1600mm).

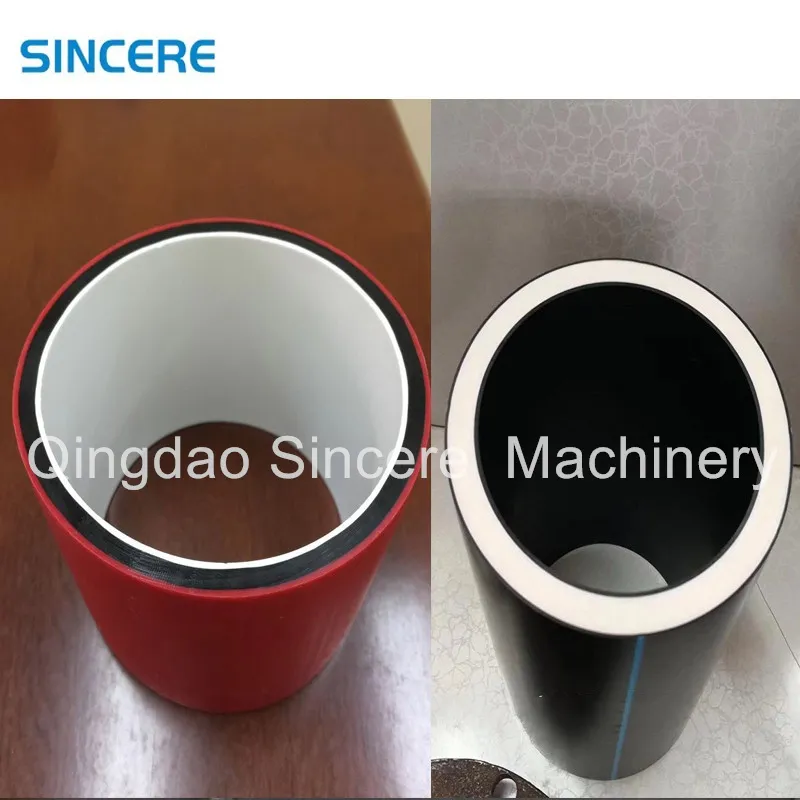

1. MPP Three Lays Electric Pipe features:
1. High precision mold 2. Good performance 3. Reasonable design 4. Long usage life 5. Product characteristics: a) Good quality b) Smooth surface c) Antibacterial d) Wearable e) Antistatic f) Insulate 6. Good production stability 7. Uses imported electric components 8. Widely used for agriculture and industry 9. Large marketing potential 10. Adopts AC frequency conversion technology

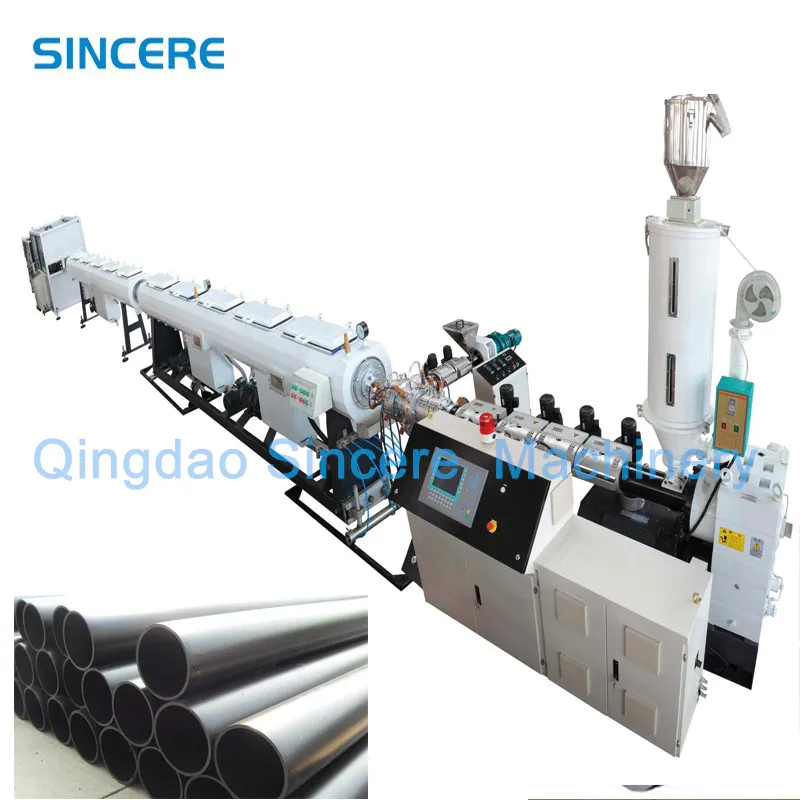

2. Production line features:

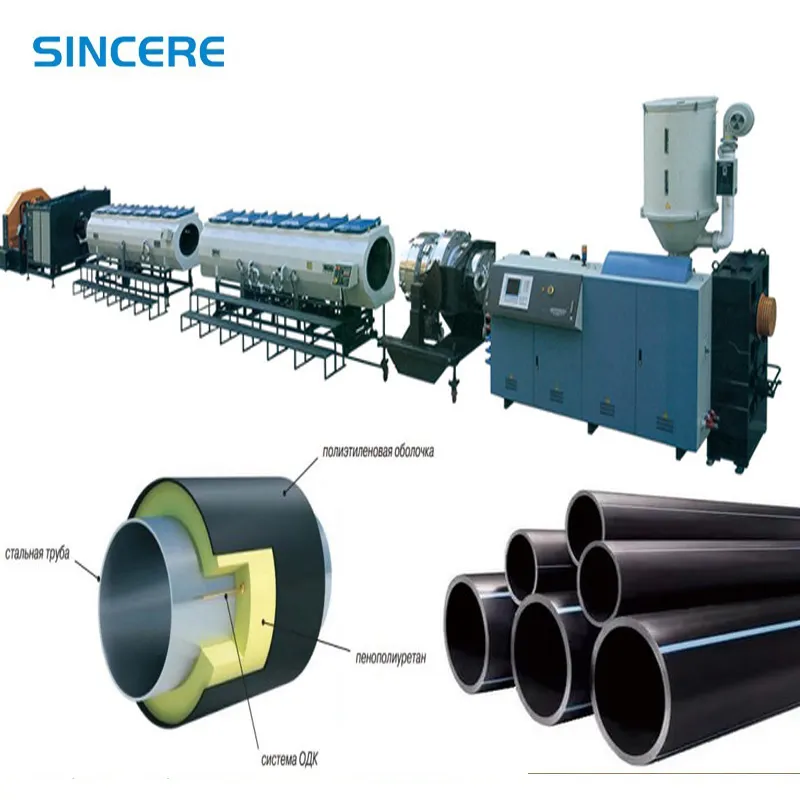

Plastic Mpp Cable Tube Protective Pipe Extrusion Line Mmp Pipe Making Machine

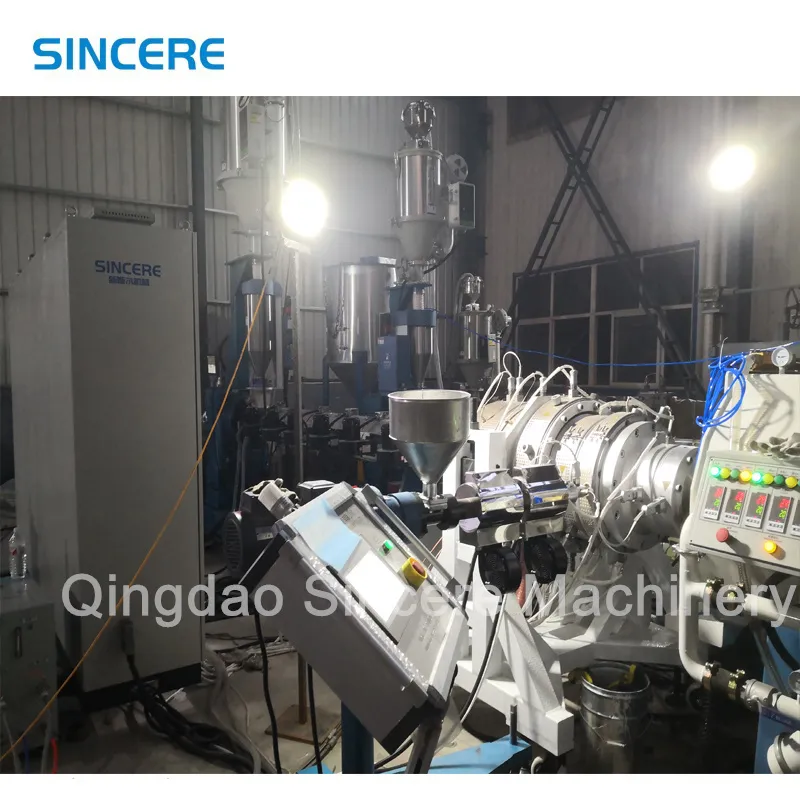

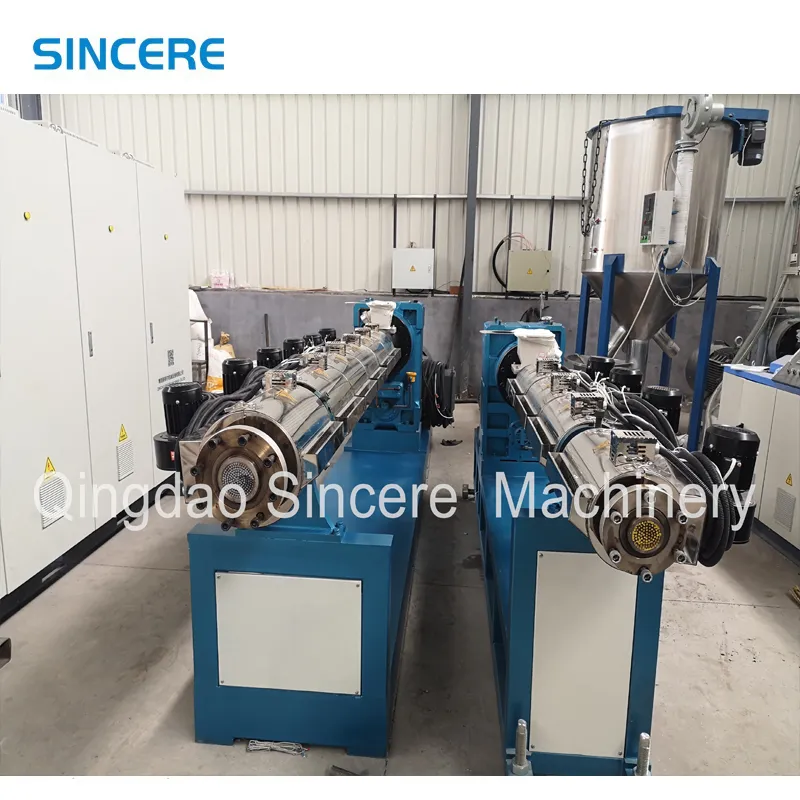

Extruders: Plastic Single-screw extruders for HDPE/PP, optinal SJ45, SJ55, SJ65,SJ75, SJ90,SJ100,SJ120,SJ150, L/D 33:1 or 38:1.
Extrusion capacity from 40kg/h to 1500kg/h.
High efficiency extruder is designed for HDPE pipe, equipped with reducer which is high speed and low noise, feeding section with cooling unit and reversing spiral groove, different pitch undulant screw which allows great output, lower melting temperature, and lower energy consumption.

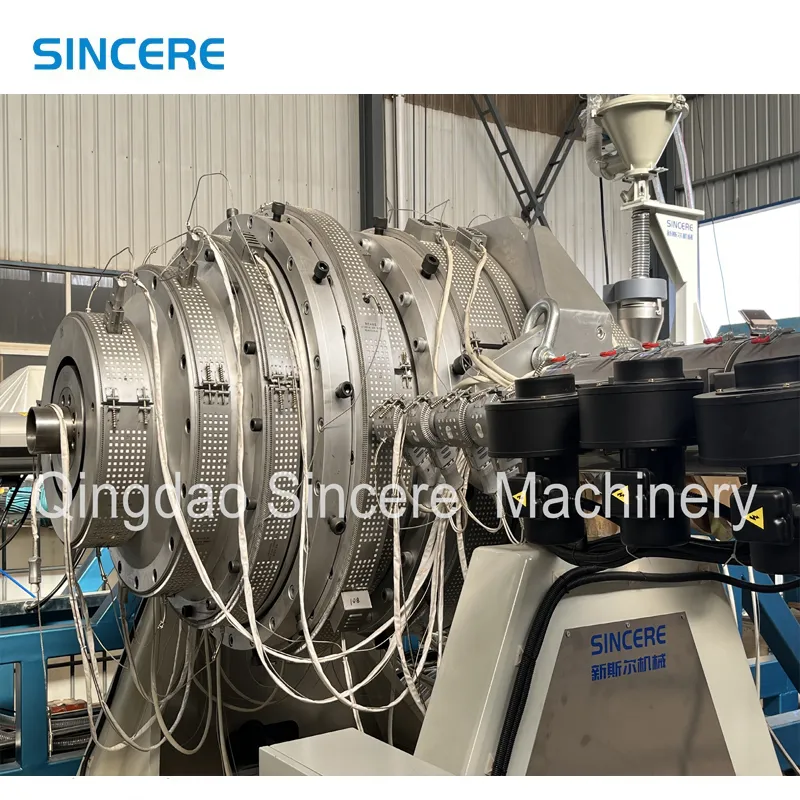

Extrusion die-head
Single layer extrusion die mould, double layers extrusion die moudld, three-layers extrusion molds.
Distributed spiral composite extrusion die-head ensures the melting pressure and flux even and stable, the surface of pipe smooth and glossy.

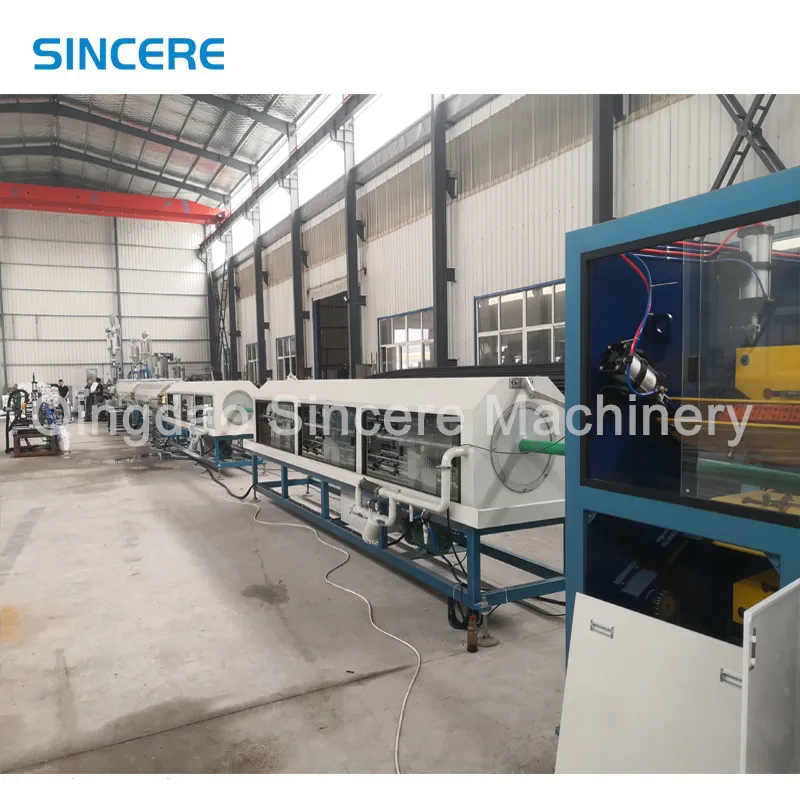

Vacuum calibration water tanks, and spray water cooling tank: made of stainless steel ensures precise calibration and fast cooling.

Multi claws haul-off unit
speed adjusted by frequency inverter or by servo-motors. Be able to cut large diameter and thick wall pipe, servo-motors
Haulling speed: 0-30m/min.

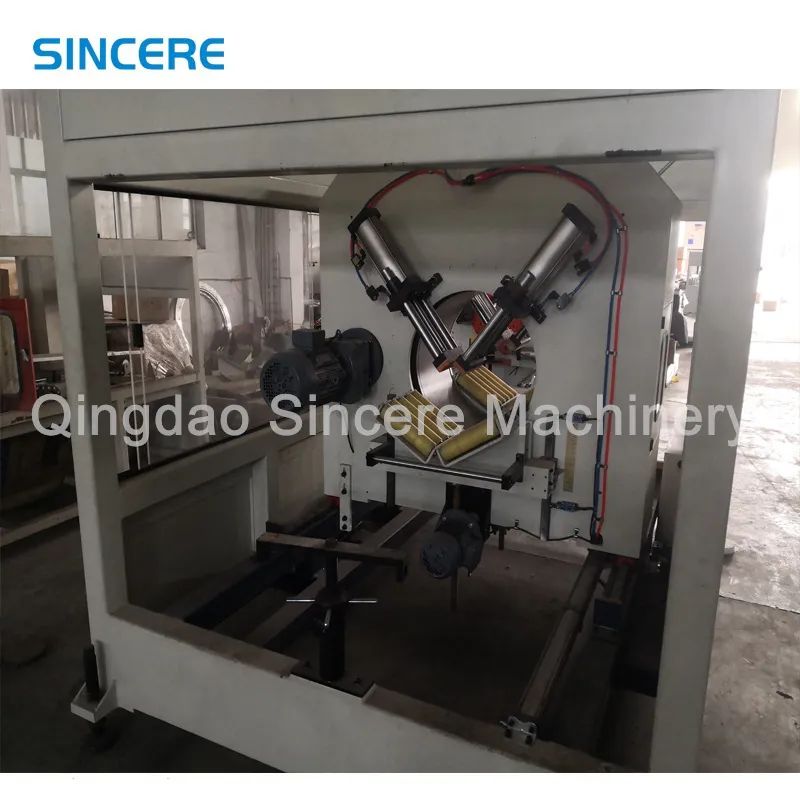

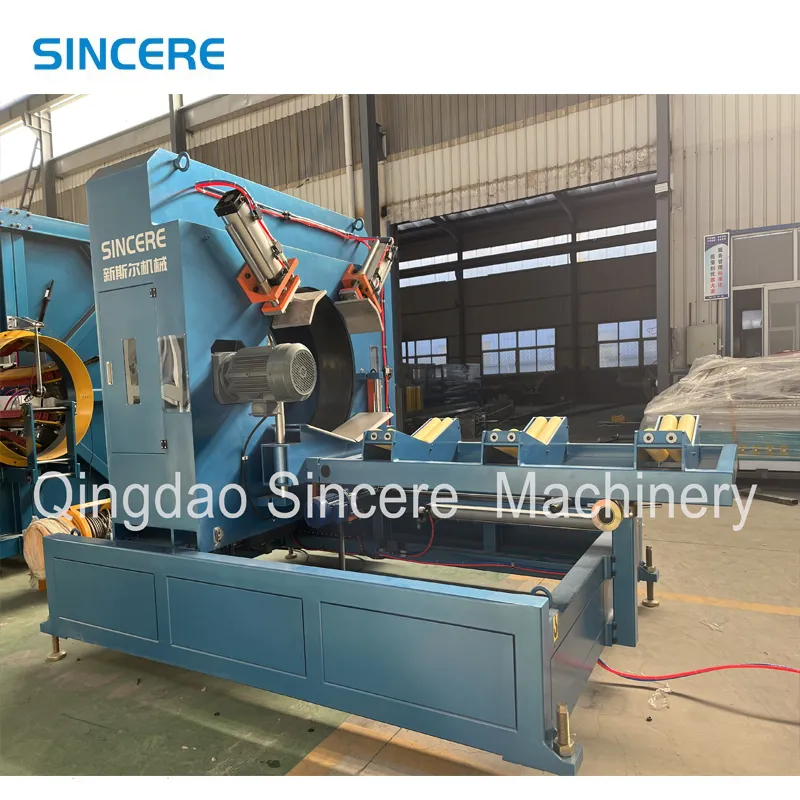

Cutting machine

1.No-dust Cutter:The chip-free cutting machine can keep the production environment clean and noiseless. The incision is smooth and neat, which improves the appearance quality of the pipe.
2.Planetary Cutter:Planetary cutting machine with special hard fit blade, suitable for large diameter thick wall pipe cutting

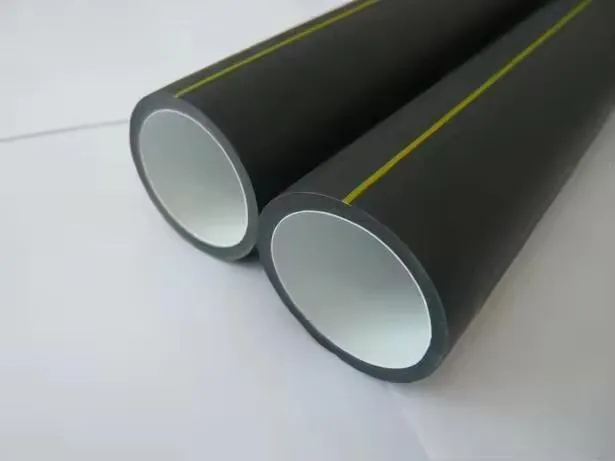

3.Final product

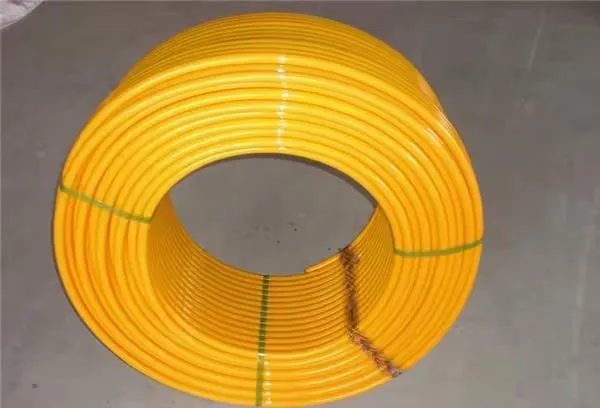

PERT Pipe PE Silicon Core Pipe

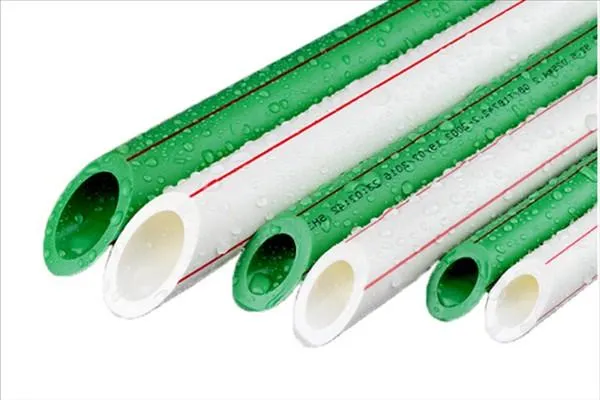

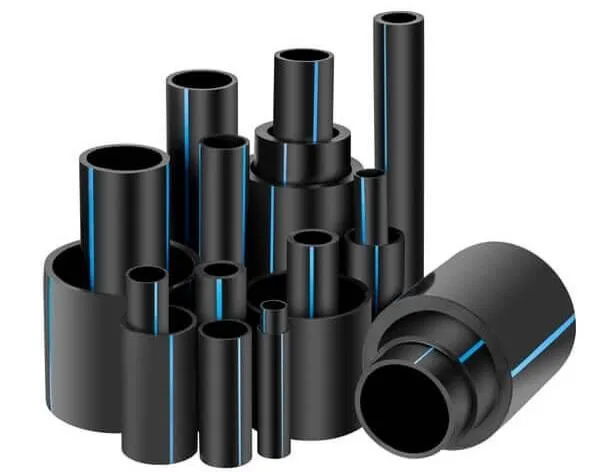

HDPE Pipe PPR Pipe

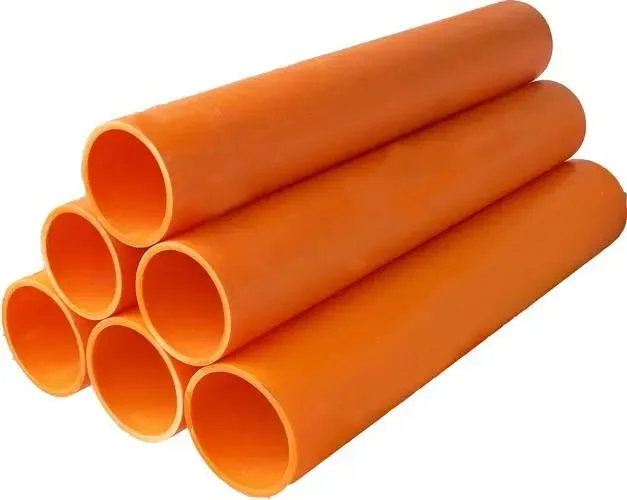

Plastic Mpp Cable Tube Protective Pipe Extrusion Line Mmp Pipe Making Machine MPP Electrical Pipe
4. Technical parameters:

Model	Pipe Diameters(mm)	Supporting extruder (33:1 or 38:1)	Extrusion capacity(kgh)	Total Installed Power(kw)
SG-63	16-63	SJ6533 SJ2525	120-180	110
SG-110	16-110	SJ6533 SJ2525	150-200	130
SG-160	50-160	SJ7533 SJ2525	150-220	150
SG-250	75-250	SJ7533 SJ2525	280-350	280
SG-315	110-315	SJ9033 SJ2525	250-350	350
SG-450	160-450	SJ9033 SJ2525	350-450	400
SG-630	315-630	SJ12033 SJ2525	550-850	550
SG-800	450-800	SJ15033 SJ2525	800-1300	750
SG-1000	600-1000	SJ15033 SJ2525	800-1300	750
SG-1200	800-1200	SJ12033*2 SJ2525	950-1600	950
SG-1600	1000-1600	SJ15033*2 SJ2525	1500-2500	1300
