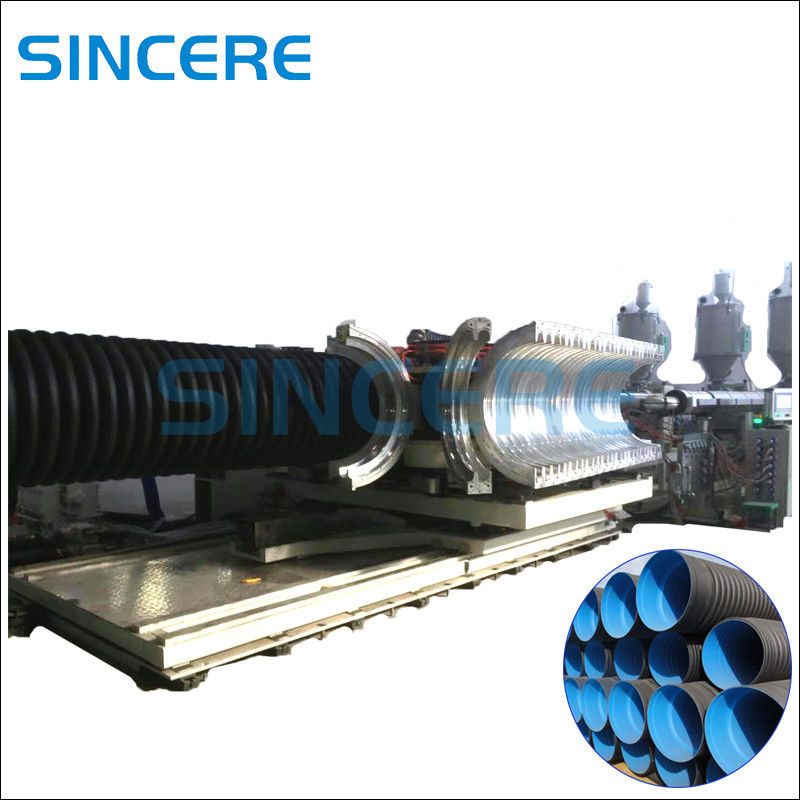

Corrugated DWC CPVC Pipe Manufacturing Machine Bellows Drainage Drip Pipe

Name: Corrugated DWC CPVC Pipe Manufacturing Machine Bellows Drainage Drip Pipe
Brand: Qingdao Sincere Machinery Co., Ltd
SKU: SMDW110,SMDW160,SMDW300,SMDW600
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Sincere

Model Number: SMDW110,SMDW160,SMDW300,SMDW600

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Delivery Time: 7-15 work days

Payment Terms: L/C,T/T

Supply Ability: 20 sets per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                DWC cpvc pipe manufacturing machine, drip cpvc pipe manufacturing machine, DWC drip pipe manufacturing machine


Condition:	New	Application:	Draiage Pipe
Plastic Processed:	PE	Screw Design:	Single-screw,Double-screw,single/double Screw Extruder
Automatic Grade:	Automatic,Full-automatic,100%	After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Free Spare Parts,Online Support
Voltage:	380V 50HZ 3Phase(Customized),380V,Customized,50hz,380 Or Customized	Power(w):	50kw,37kw,18.5kw,1.5-200KW,`
Weight:	10T,2T,2-10T,8-20T,1T	Dimension(lwh):	CAPACITY,20mx2.5mx2.2m,2023.5m,12m1m2m,60m3m4m
Warranty:	1 Year,12 Months	Color:	White / Blue Or According To Request,Grey Or Customized,as Clients' Requirements,Customized,Jiangsu XinRong Standard Color(white)
Raw Material:	PVC Powder,pvc Pe Pp Eva,Hdpe/PP Pellets,PE,PP PE PVC PA Granules	Inverter:	ABB Brand,ABB Frequency Controller
Pipe Diameter:	40-110mm,800~1200mm,300-800mm	Name:	HDPE Hollow Wall Winding Pipe Extrusion Line,plastic Corrugated Pipe Extrusion Machine,Corrugated Pipes Machine,Single Screw Double Wall Corrugated Plastic Hdpe Pipe Extrusion Line
Processing Type:	Extruding Machine,Pipe Extrusion	Contactor:	Siemens Contactor,Schnerder

Condition:	New
Application:	Draiage Pipe
Plastic Processed:	PE
Screw Design:	Single-screw,Double-screw,single/double Screw Extruder
Automatic Grade:	Automatic,Full-automatic,100%
After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Free Spare Parts,Online Support
Voltage:	380V 50HZ 3Phase(Customized),380V,Customized,50hz,380 Or Customized
Power(w):	50kw,37kw,18.5kw,1.5-200KW,`
Weight:	10T,2T,2-10T,8-20T,1T
Dimension(lwh):	CAPACITY,20mx2.5mx2.2m,2023.5m,12m1m2m,60m3m4m
Warranty:	1 Year,12 Months
Color:	White / Blue Or According To Request,Grey Or Customized,as Clients' Requirements,Customized,Jiangsu XinRong Standard Color(white)
Raw Material:	PVC Powder,pvc Pe Pp Eva,Hdpe/PP Pellets,PE,PP PE PVC PA Granules
Inverter:	ABB Brand,ABB Frequency Controller
Pipe Diameter:	40-110mm,800~1200mm,300-800mm
Name:	HDPE Hollow Wall Winding Pipe Extrusion Line,plastic Corrugated Pipe Extrusion Machine,Corrugated Pipes Machine,Single Screw Double Wall Corrugated Plastic Hdpe Pipe Extrusion Line
Processing Type:	Extruding Machine,Pipe Extrusion
Contactor:	Siemens Contactor,Schnerder

Product Description

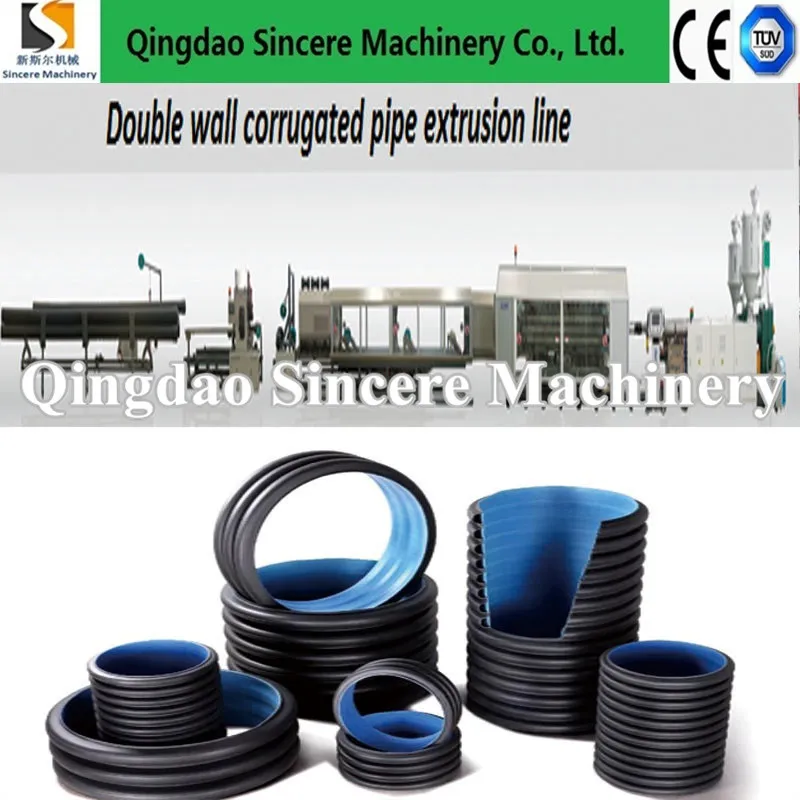

High-Speed PE PP double wall corrugated pipe making machine/extrusion line(90-1200mm).
New Type PE PP double wall corrugated pipe making machine/extrusion line(90-1200mm).

Diameters: 90-300mm,110-600mm,200-800mm,300-1000mm,600-1200mm

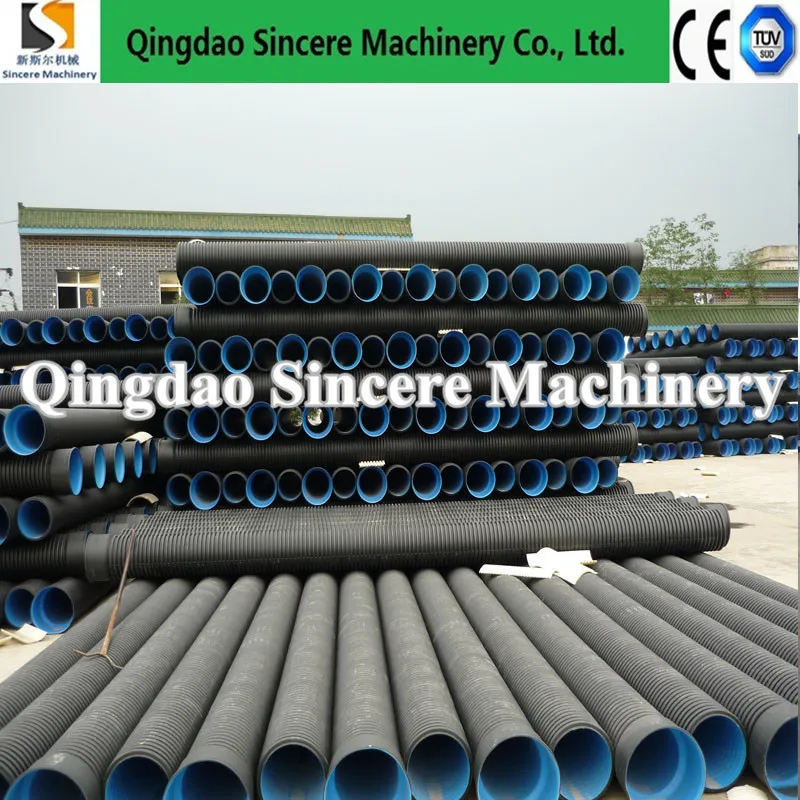

1. HDPE double-walled corrugated pipe application:

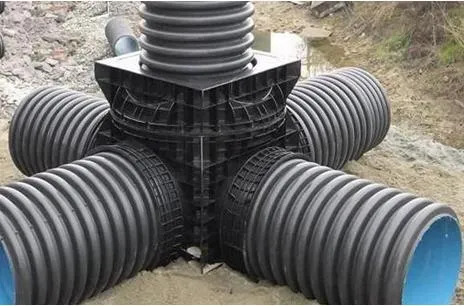

HDPE / PP double wall corrugated pipe is widely used as drain pipe. The company absorbs foreign advanced technology, independent research and development of the HDPE double wall corrugated pipe production line, with a number of patented technologies. Our new high-speed PE | PP double-wall corrugated pipe production line, the use of new high-performance single-screw extruder, forming machine using horizontal structure, shuttle drive, sealed water-cooled, online flaring, high degree of automation, stable operation, large output.

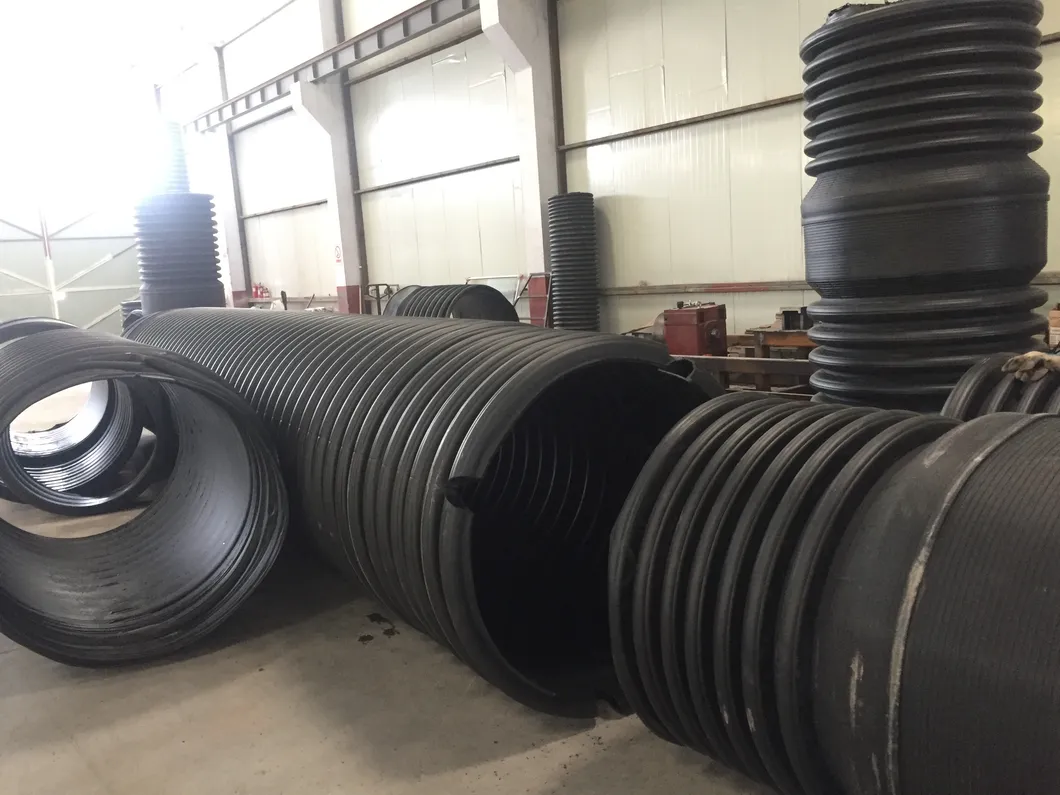

2. PE / PP double wall corrugated pipe production line, can be used to produce ID90-ID1200 specifications of the single-walled, double-wall corrugated pipe (with Pipe Belling), three-wall corrugated pipe, different shapes and special requirements of special-shaped bellows.

3. Main technical parameters:

Line Model	SMSG-300	SMSG-600	SMSG-800	SMSG-1000	SMSG-1200
the diameter range (DN\|ID)(mm)	90mm-300mm	110mm-600mm	200mm-800mmmm	300mm-1000mm	600mm-1200mm

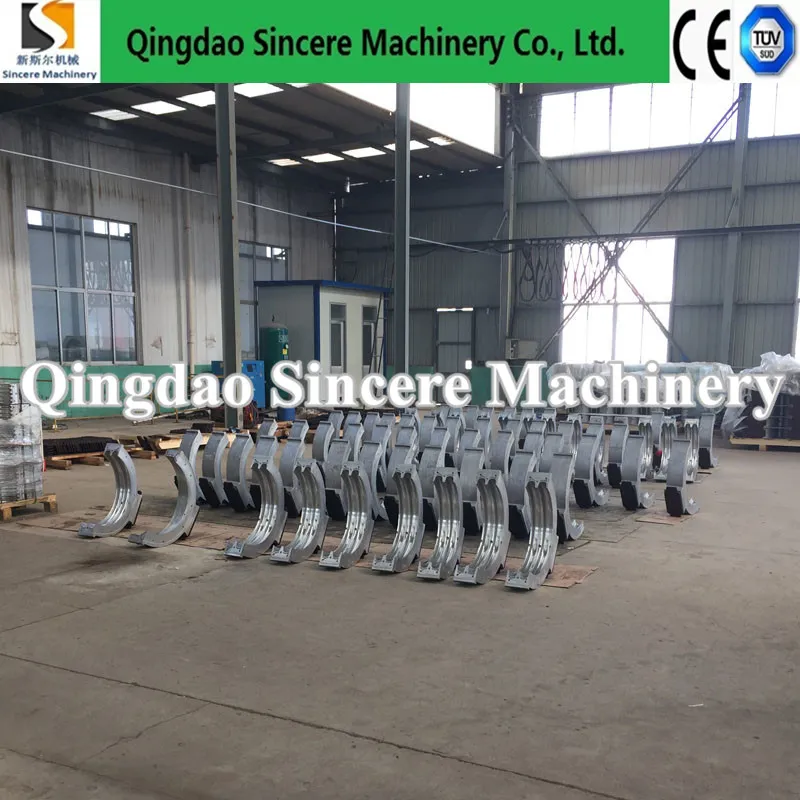

Mold number (pair)	36	36	36	39	39
Max. Operating speed (mmin)	18	6.5	5.5	3.5	1.8
Total power(kw)	250	395	650	980	1350
Max. output(kgh)	600	1350	1600	1900	2100
Dimension (mm) LengthWidthHeight	273.52.8m	275.53.8m	296.84.0m	327.64.2m	358.54.5m

Single screw extruders with big LD, and Long die-head mould and calibrator.

Large Diameter Double Wall Corrugated Dwc Pipe Making Machine HDPE Dual Wall Bellows Drainage Pipe Extrusion Machine

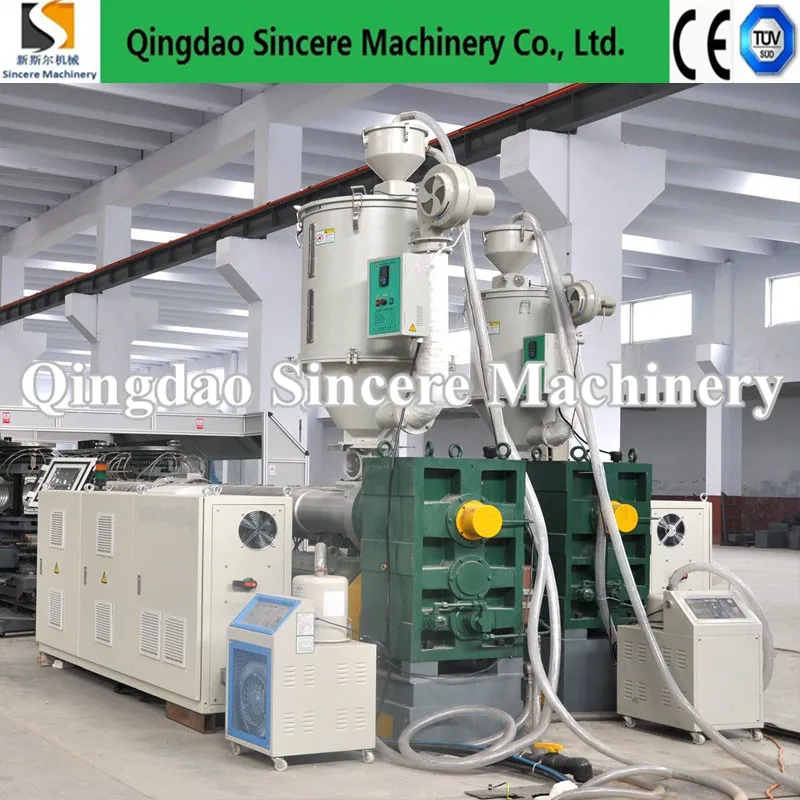

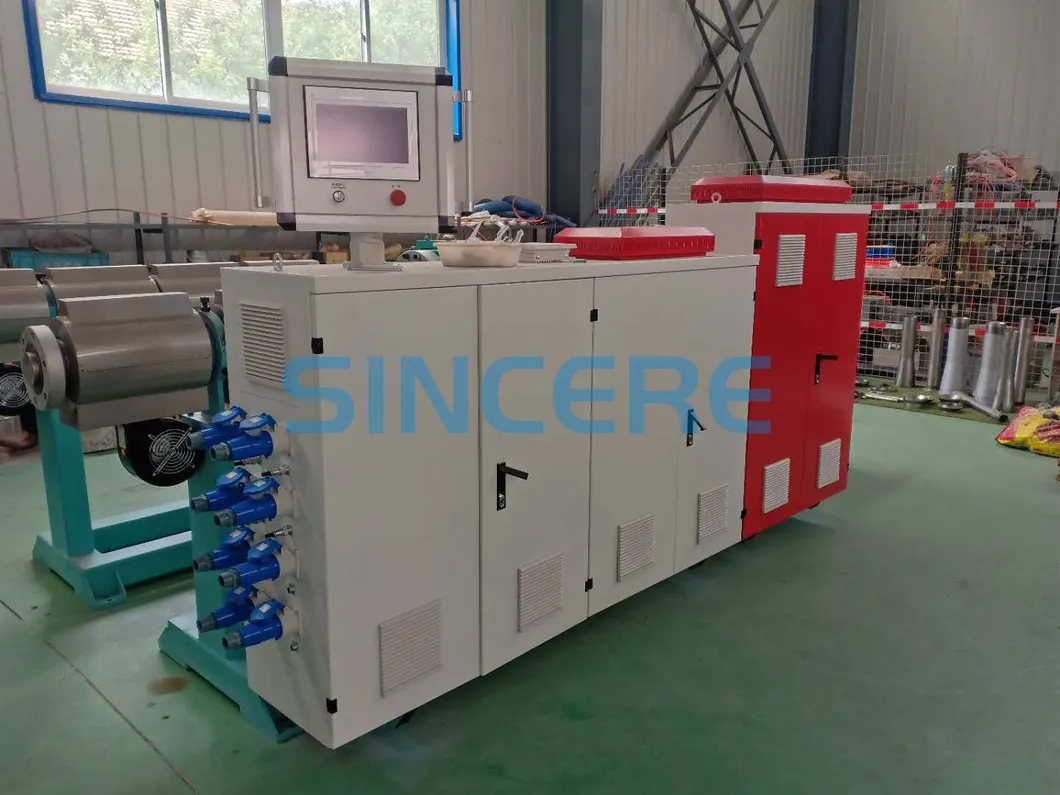

Single Screw Extruder

High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality PIPE extrusion.

Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel>940, the surface of screw is chromeplated Feeding bush with water cooling system

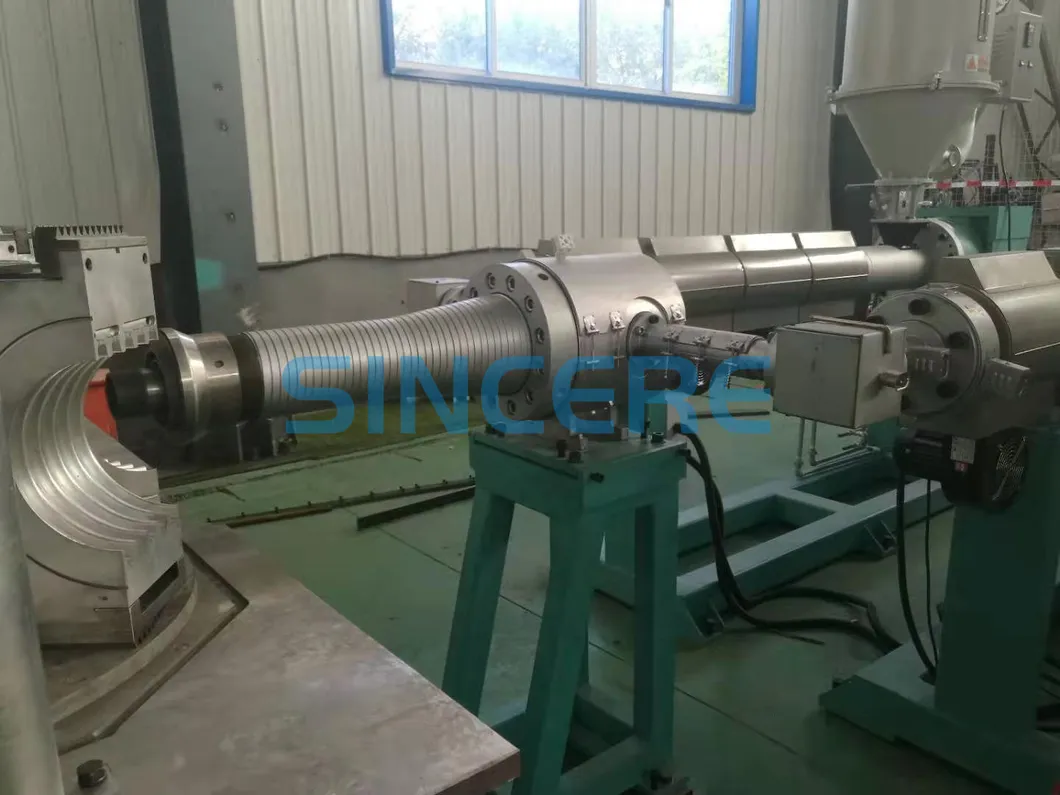

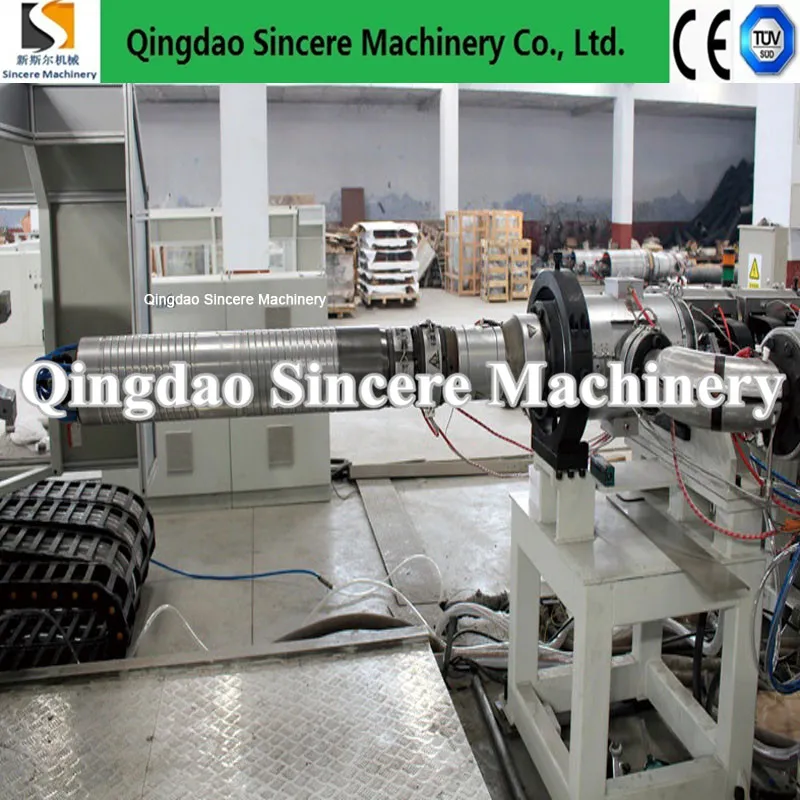

Extrusion Die

Material :40Cr , the surface of die is chromeplated, anti-corrosive

Two layer with aluminum cooling sleeve

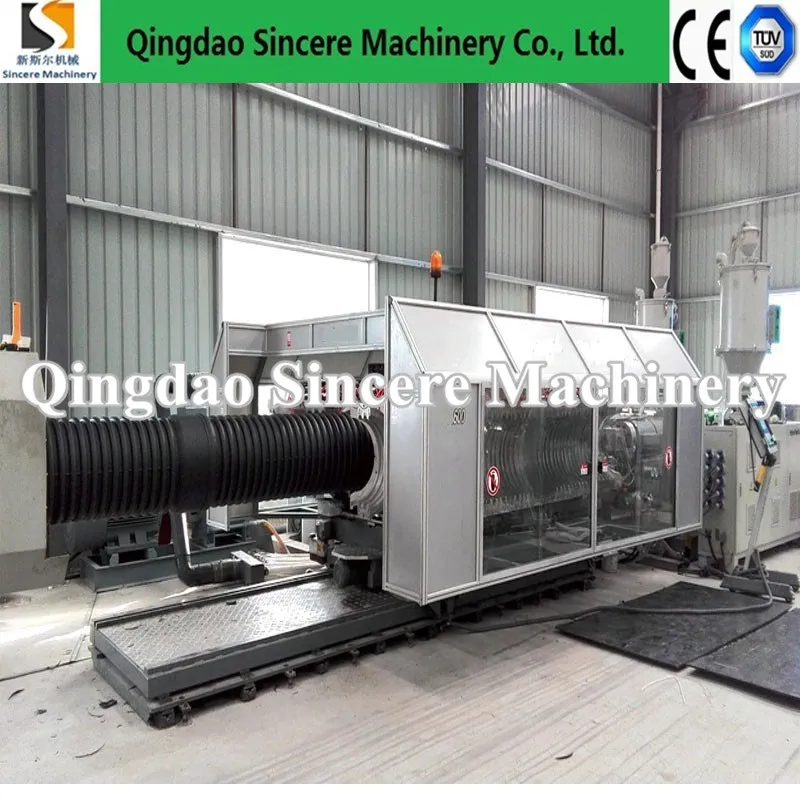

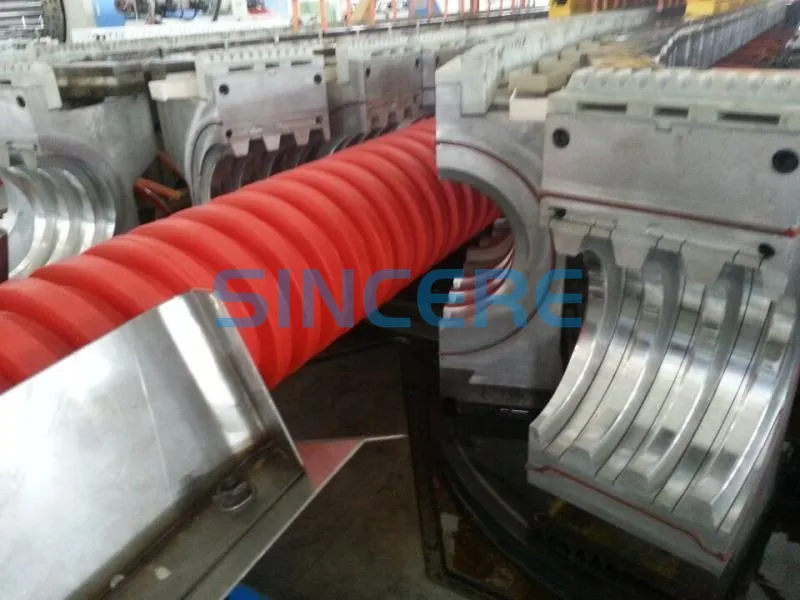

High Speed Forming Machine

Gear driven system with high precision modules and tracks. The track is water cooling system, it could meets 4-6m/min working speed.It is added water cooling and fan cooling two system.
