HDPE Thermal Insulation Epoxy Steel Pipe Coating Line Extruder Lining Equipment

Product Details

Place of Origin: China

Brand Name: Sincere

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Delivery Time: 7-15 work days

Payment Terms: L/C,T/T

Supply Ability: 20 sets per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Thermal Insulation Steel Pipe Coating Line, HDPE Steel Pipe Coating Line, Extruder epoxy pipe lining equipment


Power:	Hydraulic,CNC,Electric,NC Semi-automatic,5.5KW	Raw Material:	PIPE,Sheet / Plate Rolling,Beam,Angle Steel ..,Chanel
After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Overseas Service Center Available,Online Support,Video Technical Support,Overseas Third-party Support Available	Condition:	New
Material / Metal Processed:	Carbon Steel,Stainless Steel,ALLOY,Aluminum,copper	Extra Services:	End Forming,Machining,Heat Treating,Cut To Length,According To Requirments
Automation:	Automatic,manual,Semi-automatic	Machine Type:	Pipe And Tube Bending Machine,Bending Machine,Press Brake
Color:	Blue,Blue Or Customized,Optional,According To Customer Requirement,Customized	Type:	Other,medium Midium Frequency Steel,induction Pipe Bending Machine,Metal Bender Tools,pipe Mouth Expander
Warranty:	12 Months,1 Year,24 Months,14 Months,1 Year For Spare Part	Application:	Petroleum Pipe Line,gas Pipeline,square And Round Pipe Bending,steel Tube Bending Machine,car
Voltage:	220V/380V/415V/440V/customized,380V/220V,380V,Customized,3 Phase 380V	Product Name:	Induction Pipe Bending Machine,SW-38A Induction Dual Head Core Pulling Pipe Bending Machine For Sale,Low Price High Frequency Induction Heating Pipe Bending Machine,AB-C3
Material:	Q235,aluminum Pipe,Metal Pipe,Carbon Steel Tube,Stainless Steel	Usage:	Bending,brazing,Pipe And Tube Bending Machine,pipe Tube Forming
Name:	Upright Adjustable Reinforcement Pipe Bender,cnc Automatic Induction Metal MS Square Pipe Bending Machine,hydraulic Pipe Bending Machine	Weight:	2000KGS,28kg,1500

Power:	Hydraulic,CNC,Electric,NC Semi-automatic,5.5KW
Raw Material:	PIPE,Sheet / Plate Rolling,Beam,Angle Steel ..,Chanel
After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Overseas Service Center Available,Online Support,Video Technical Support,Overseas Third-party Support Available
Condition:	New
Material / Metal Processed:	Carbon Steel,Stainless Steel,ALLOY,Aluminum,copper
Extra Services:	End Forming,Machining,Heat Treating,Cut To Length,According To Requirments
Automation:	Automatic,manual,Semi-automatic
Machine Type:	Pipe And Tube Bending Machine,Bending Machine,Press Brake
Color:	Blue,Blue Or Customized,Optional,According To Customer Requirement,Customized
Type:	Other,medium Midium Frequency Steel,induction Pipe Bending Machine,Metal Bender Tools,pipe Mouth Expander
Warranty:	12 Months,1 Year,24 Months,14 Months,1 Year For Spare Part
Application:	Petroleum Pipe Line,gas Pipeline,square And Round Pipe Bending,steel Tube Bending Machine,car
Voltage:	220V/380V/415V/440V/customized,380V/220V,380V,Customized,3 Phase 380V
Product Name:	Induction Pipe Bending Machine,SW-38A Induction Dual Head Core Pulling Pipe Bending Machine For Sale,Low Price High Frequency Induction Heating Pipe Bending Machine,AB-C3
Material:	Q235,aluminum Pipe,Metal Pipe,Carbon Steel Tube,Stainless Steel
Usage:	Bending,brazing,Pipe And Tube Bending Machine,pipe Tube Forming
Name:	Upright Adjustable Reinforcement Pipe Bender,cnc Automatic Induction Metal MS Square Pipe Bending Machine,hydraulic Pipe Bending Machine
Weight:	2000KGS,28kg,1500

Product Description

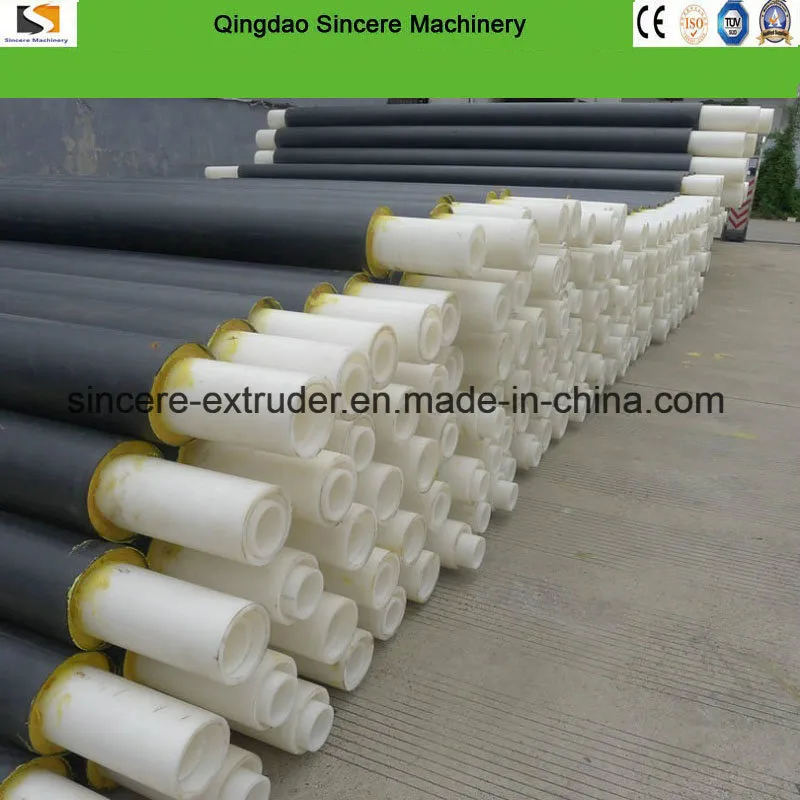

Pre-insulated pipe production line with HDPE Black/Yellow Shell and polyurethane foam.
HDPE Casing Pipe Making Machine.
polyurethane foaming Machine.
One-step or two-step Pre-insulated pipe production line.

Type 1: Two Step vacuumcalibration Polyurethane insulation Pipe Making Machine
Brand : Qingdao Sincere Machinery

Two Step Pre-insulated Pipe Making Machine
Isolate heat layer and anti-corrosion layer are wrapped on steel pipe at the same time, continuous production, high efficiency and low cost.
Machine feature: low cost, without vacuum calibration tank, inner pressure produce method;
In-line ball blast de-rust, in-line painting and antirust treatment.
Diameter range: Φ48-Φ1800mm.
This set is mainly used to produce the big size PE heat preservation pipe. Its product is mainly used in the outer layer of heating pipe line, the middle layer is polyurethane foaming layer and the inner layer is steel tube.
It can also produce water supply pipe and drain pipe by adding the vacuum calibration tank and cooling tank.
This set is composed of extruder, die and mould, cooling water sink, haul off machine, clipping pipe machine, bracket, support frame and electric controlling pats, etc.

Technology flow:HDPE two step method is produce the HDPE casing in first step, then thread pipe inside the casing and foaming in the middle of it.
Main technical data:

Extruder	Haul off machine	Main mould	Pipe dia.
SJ90-1/25	SJGF-400-6 claws	Φ110, Φ250	Φ75-Φ400
SJ120-1/25	SJGF-800-8 claws	Φ420	Φ400-Φ760
SJ150-1/25	SJGF-1500-10 claws	Φ760	Φ600-Φ1800

Type 2: One Step Polyurethane insulation Pipe Making Machine
Brand : Qingdao Sincere Machinery

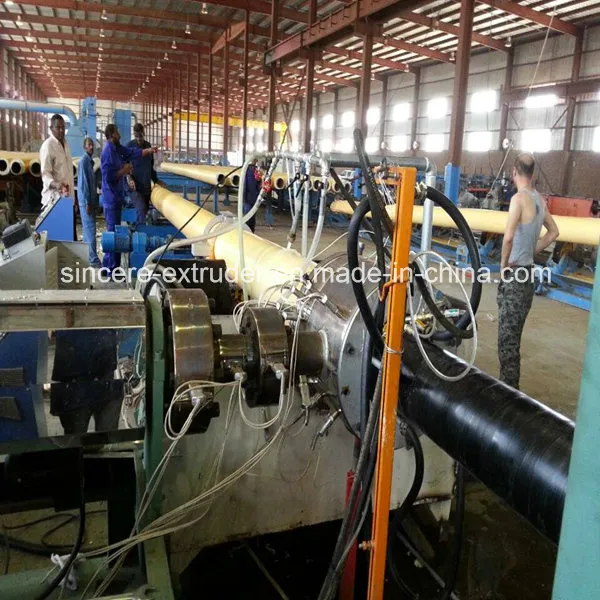

One Step Pre-insulated Pipe Making Machine
This one step technology is to cover the steel tube surface with insulation layer& anti-corrosion layer at the same time, thus forms insulating& anti-corrosion layer of the pepeline, which is pioneer way in China, Compred wich other methods, it features continuous operation, high efficiency, low cost, energy saving, labor saving, environment pollution-free and so on. Progress second prize, several technology update to the advanced international lever. After updating technology, it has reached internation advanced lever.
The outer casing can be yellow color and black color.
Technical features of pre-insulated pipe making machine:
1. can be operated continuously, high production efficiency, low cost, energy saving
2. automatic deviation adjusting machine, high exactness, steady working, effective correction
3. the whole line all conveyed by rubber wheel, avoid damage to anti-corrosion layer of steel tube
4. casing layer stick with foam layer, foam layer stick with anti-corrosion layer, anti-corrosion layer firmly stick with steel tube.
5,Foming machine online foaming;
6,Pushing machine push the steel into the clad die head&Mould easily;

Specification table of pre insulated pipe: The thickness of foaming layer and casing can be desinged according to customer's requirement

Steel Tube Size(mm)	Casing Wall Thickness(mm)	Insulating Layer(mm)
45	2.0	29
57	2.0	29
76	2.2	30
89	2.2	30
108	2.4	30
133	2.4	30
159	2.5	40
219	2.5	40
273	3.0	40
325	3.0	40
377	3.5	40
426	4	50

Constitute of one step pre-insulated pipe making machine:
1,Pushing Machine

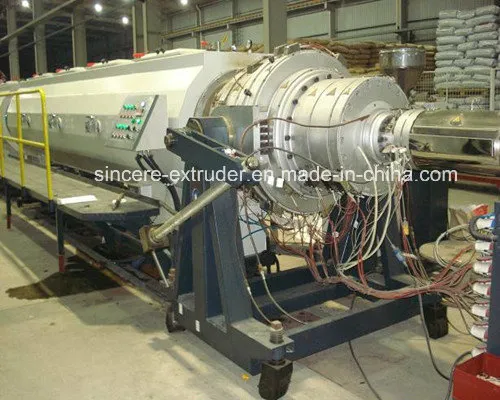

2,Single Screw Extruder

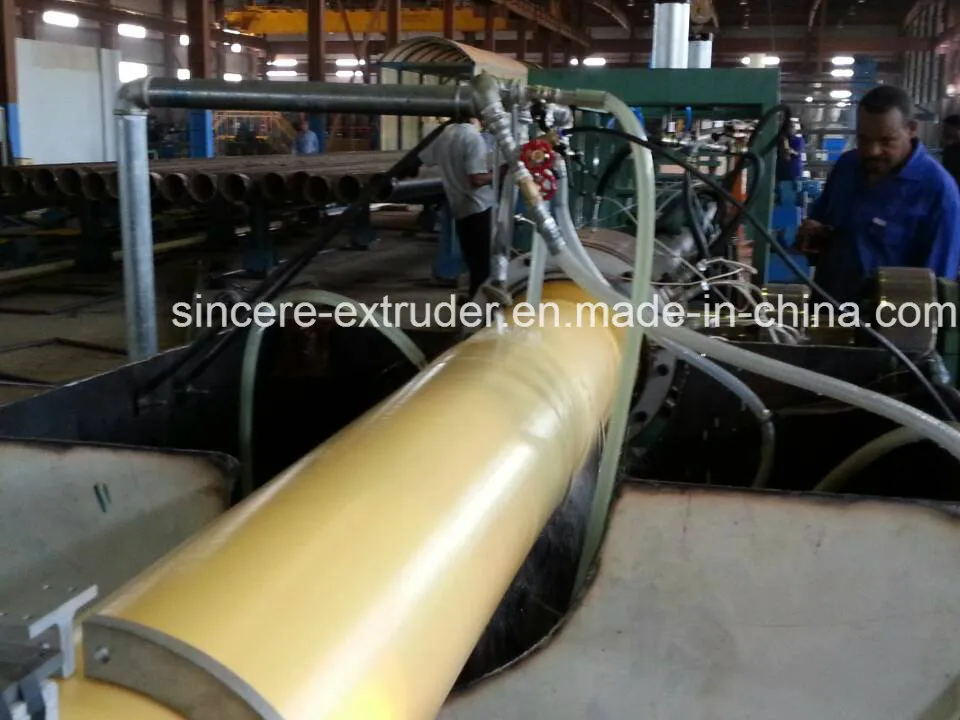

3,Die Head&Mould for threading the steel pipe

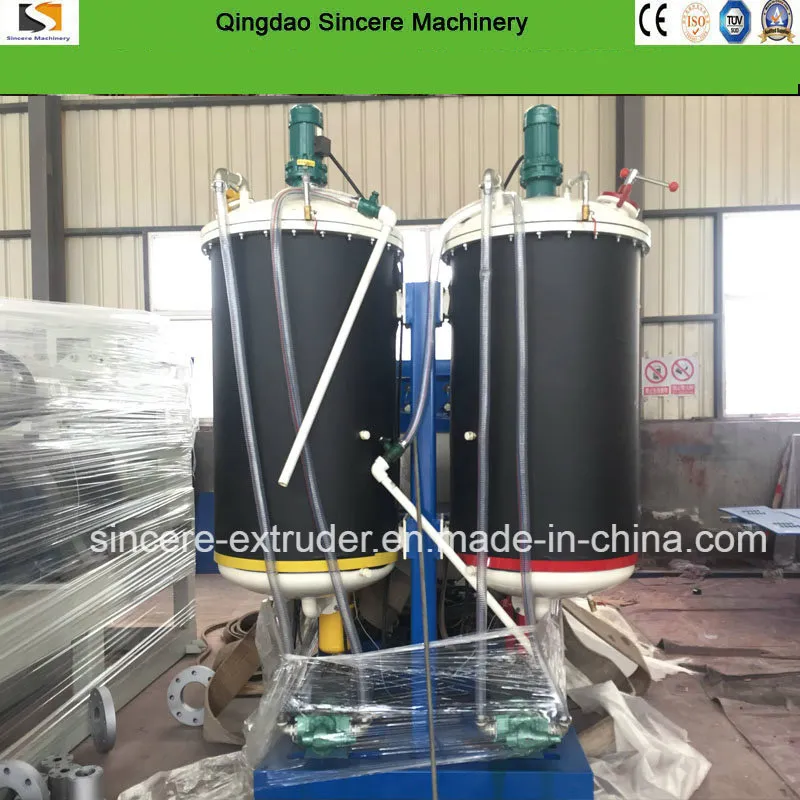

4,Low Pressure Foaming Machine
5,Water Cooling Tank
6,Auto Deviation Correction Machine

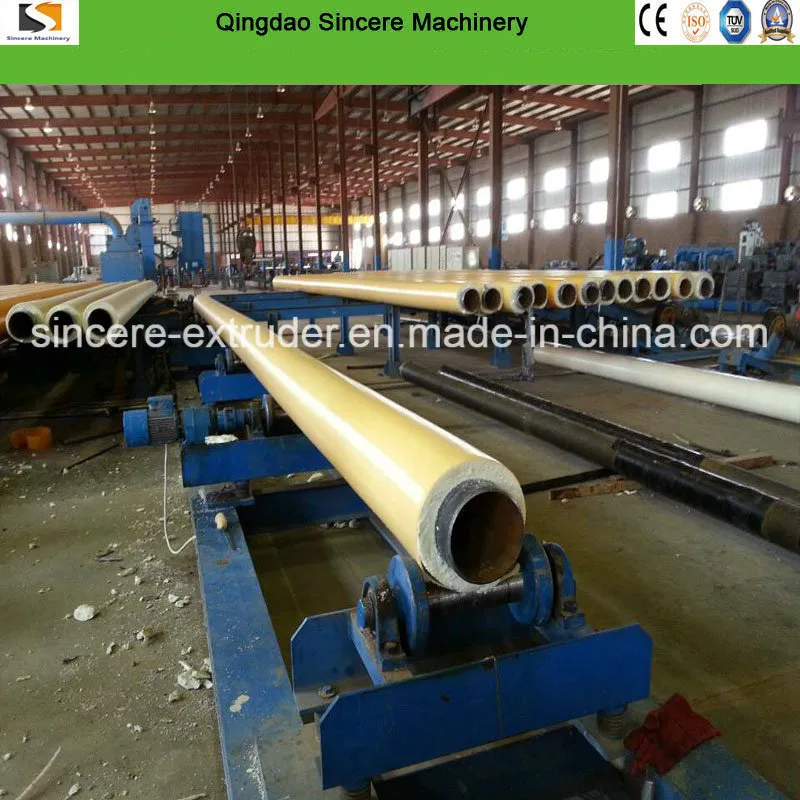

7,Transmission Line for conveying steel pipe and conveying finished foam pipe
HDPE Thermal Insulation Pipe Making Machine for Steel Tube

HDPE Thermal Insulation Pipe Making Machine for Steel Tube

We also provid new-type fully plastic PPRPER-TPVCHDPE Polyurethane insulation pipes processing and manufacturing line.
HDPE Thermal Insulation Pipe Making Machine for Steel Tube
