Three Layer FBE 3PE Steel Epoxy Pipe Lining Machine Coating Painting Line

Product Details

Place of Origin: China

Brand Name: Sincere

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Delivery Time: 7-15 work days

Payment Terms: L/C,T/T

Supply Ability: 10 sets per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                3PE epoxy pipe lining machine, Three Layer epoxy pipe lining machine, 3PE pipe painting machine


Model:	XYZ-1000	Application:	Pipeline Corrosion Protection
Heating Method:	Electric Heating	Coating Speed:	5-10m/min
Coating Thickness:	1-5mm	Spraying Method:	Airless Spraying
Power Supply:	380V/50Hz	Warranty:	1 Year
Material:	Steel	Coating Temperature:	150-200℃
Drying Method:	Hot Air Circulation	Coating Type:	3PE/2PE/3PP/2PP
Control System:	PLC

Model:	XYZ-1000
Application:	Pipeline Corrosion Protection
Heating Method:	Electric Heating
Coating Speed:	5-10m/min
Coating Thickness:	1-5mm
Spraying Method:	Airless Spraying
Power Supply:	380V/50Hz
Warranty:	1 Year
Material:	Steel
Coating Temperature:	150-200℃
Drying Method:	Hot Air Circulation
Coating Type:	3PE/2PE/3PP/2PP
Control System:	PLC

Product Description

Three Layers FBE 3PE Steel Pipe Oil Transport Pipe Plastic Coating Line

Product Description

FBE 2PEPP,3PEPP Anti-corrosion coating line for steel pipes
FBE 2PEPP,3PEPP Anti-corrosion coating line for steel pipes
Φ159-Φ1220.
1.Production Process of 3PE Steel Pipe Coating Line

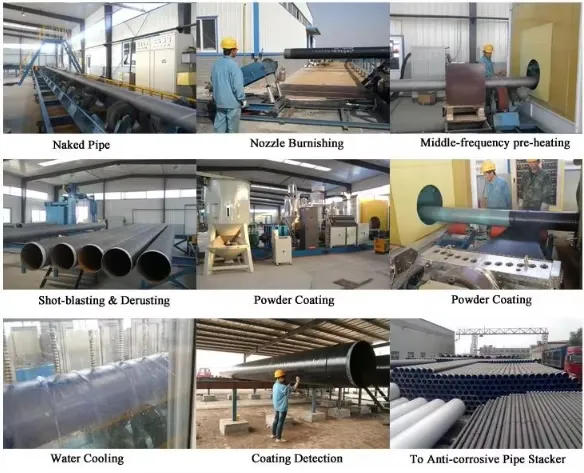

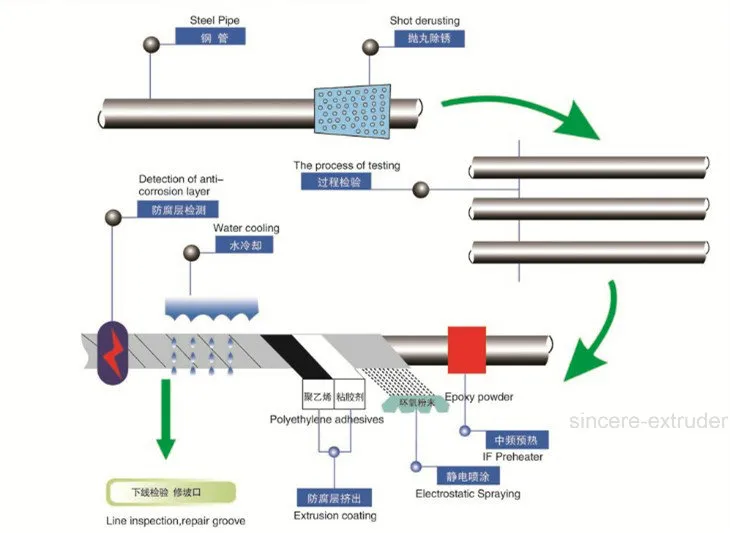

(1)Outer Layer anticorrosion manufatcuring flow chart:
Three Layers Fbe 3PE Steel Pipe Oil Transport Pipe Plastic Coating Line

Three Layers Fbe 3PE Steel Pipe Oil Transport Pipe Plastic Coating Line

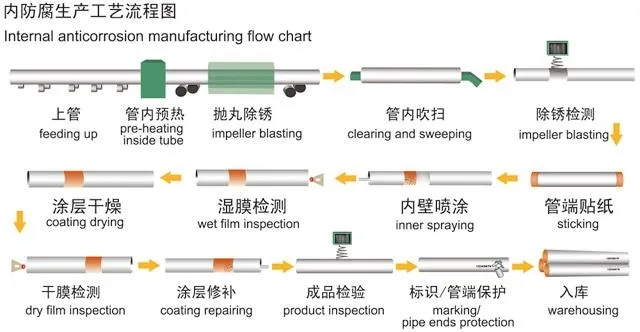

(2)Inner Layer anticorrosion manufacturing flow chart:
2.Description of 3PE Steel Pipe Coating Line:
3PE anti-corrosion steel pipe features:
The steel pipe passes the anti-corrosion. In addition to improving the service life of the steel pipe, it is also manifested in the following aspects:
1. Combine the mechanical strength of the steel pipe with the corrosion resistance of the plastic;
2. The outer wall coating is more than 2.5mm, which is resistant to scratches and bumps;
3, the inner wall friction coefficient is small, 0.0081-0.091, reducing energy consumption;
4. The inner wall meets national health standards;
5, the inner wall is smooth and not easy to scale, with self-cleaning function.

Steel pipe 3PE anti-corrosion line material:
3pe anti-corrosion steel pipe base material includes seamless steel pipe, spiral steel pipe and straight seam steel pipe.
FBE Epoxy powder, AD glue, polyethylene

Production line composition:

The production line includes steel pipe transmission system, surface treatment system, pipe dust removal system, steel pipe heating system, electrostatic spraying system, coating system, water cooling system, end cutting system, hydraulic and pneumatic system, inspection system and electronic control system.

Extruder: High-efficiency single-screw extruder with high extrusion capacity and good plasticizing effect.
Steel pipe shot blasting machine: High-power high-efficiency blasting machine is adopted to ensure the surface grade of steel pipe is ≥Sa2.5. High-speed shot blasting equipment inside and outside the wall.

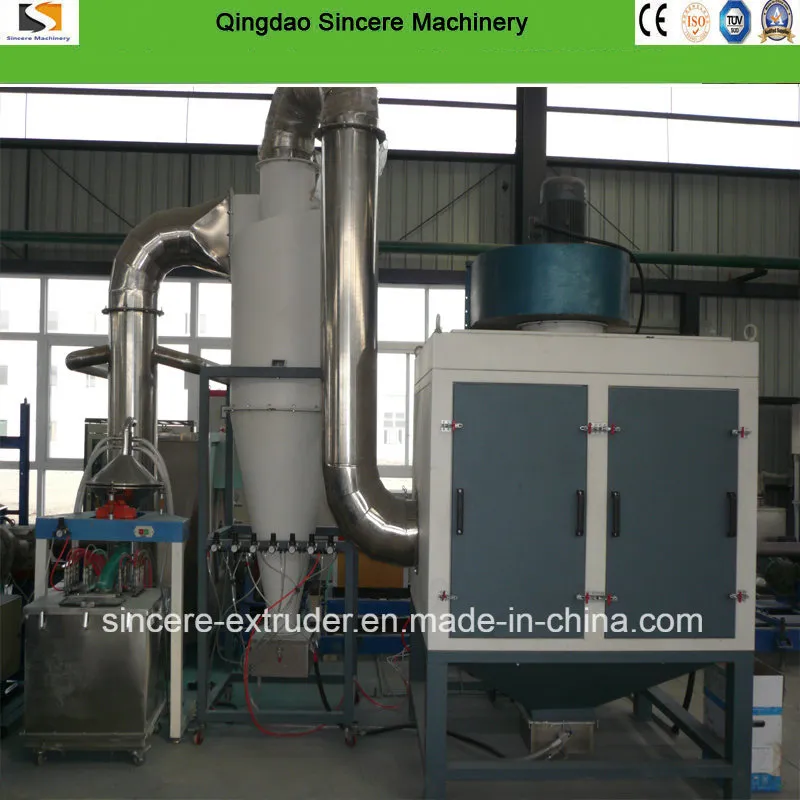

Epoxy powder coating and recycling system: high performance electrostatic spraying equipment. The 8-24 pcs spray guns are used for different pipe diameters. The FBE spray is even and the effect is good.
Control system: professional PLC control system, intelligent centralized control. Microcomputer control automatically adjusts the coordination of the various parts of the production line.

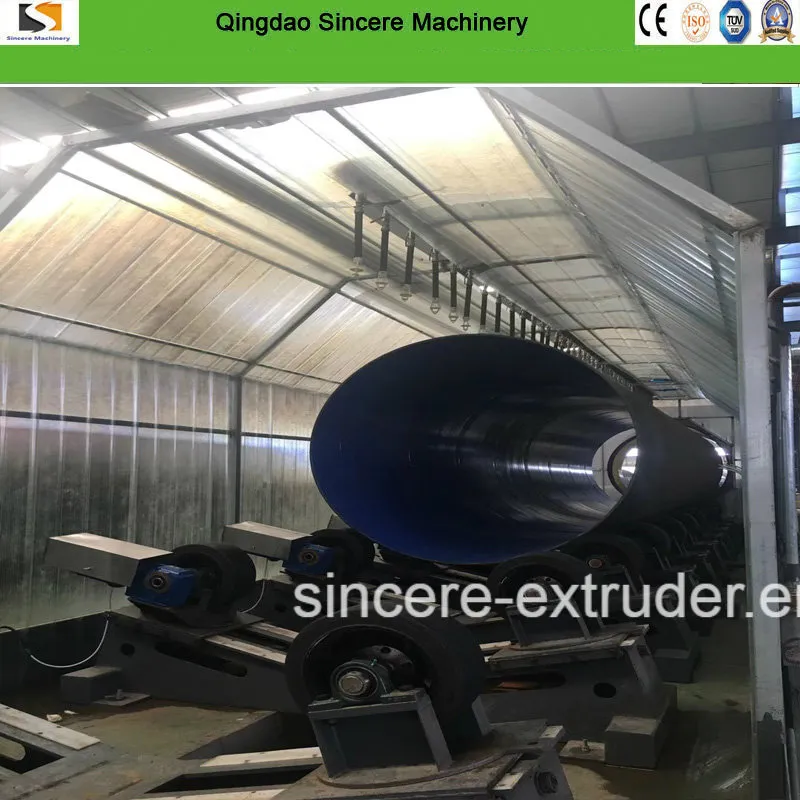

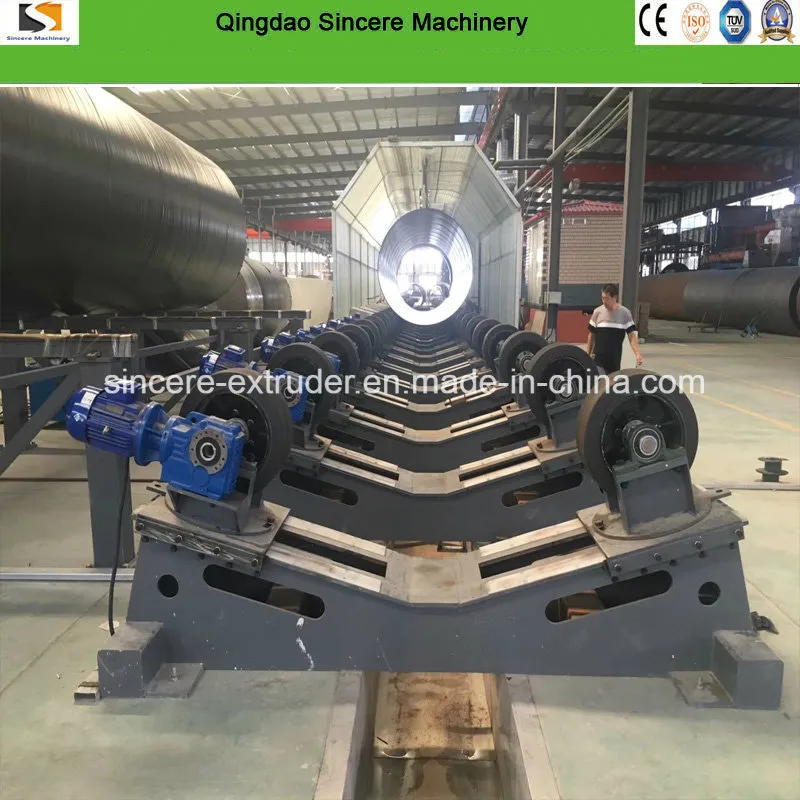

Detailed Machine Show:

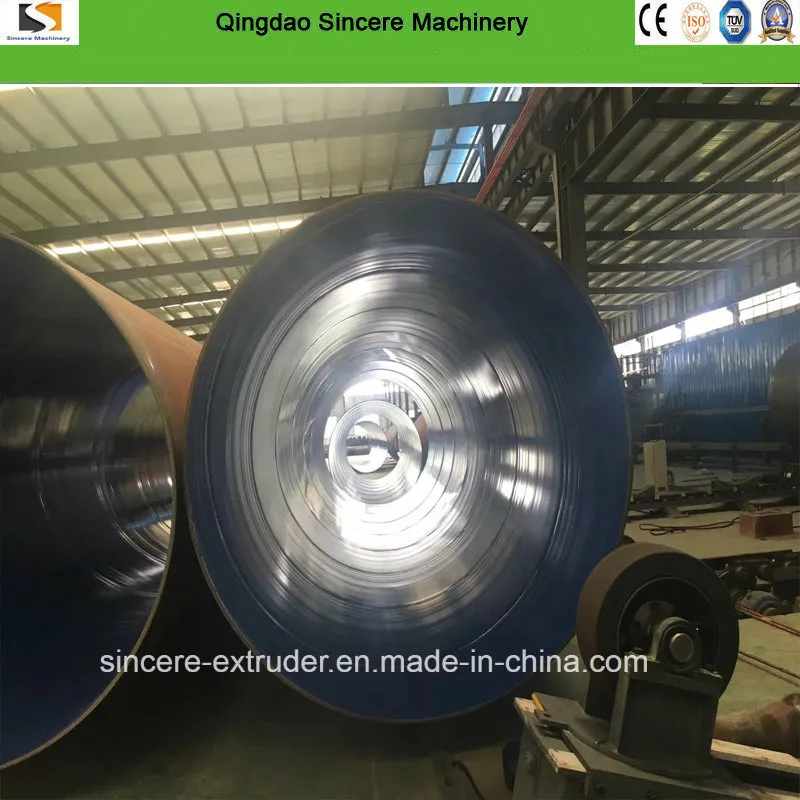

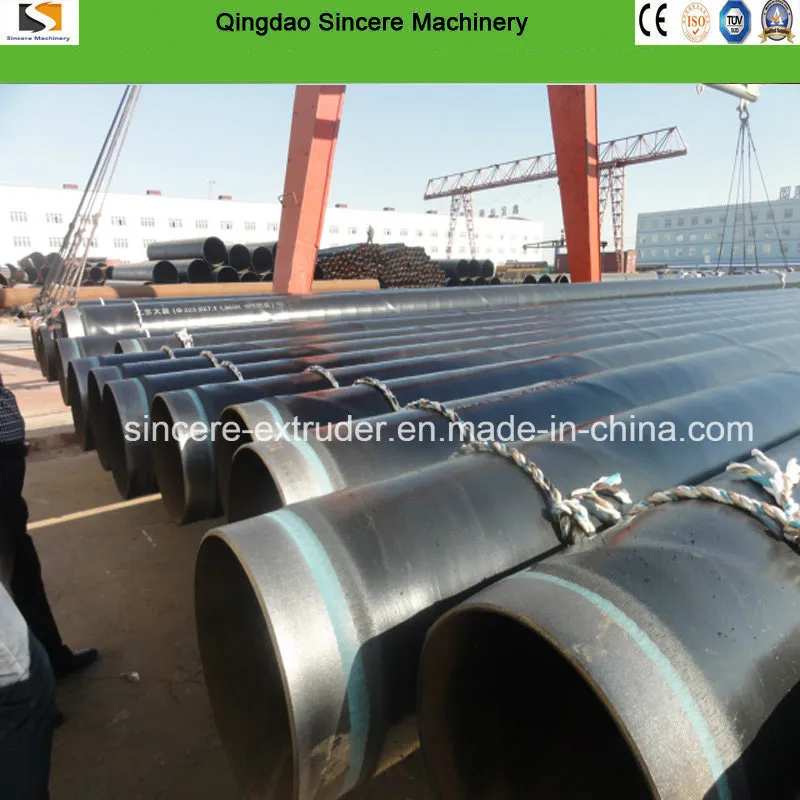

3.Final Products Show & Application:

Three Layers Fbe 3PE Steel Pipe Oil Transport Pipe Plastic Coating Line

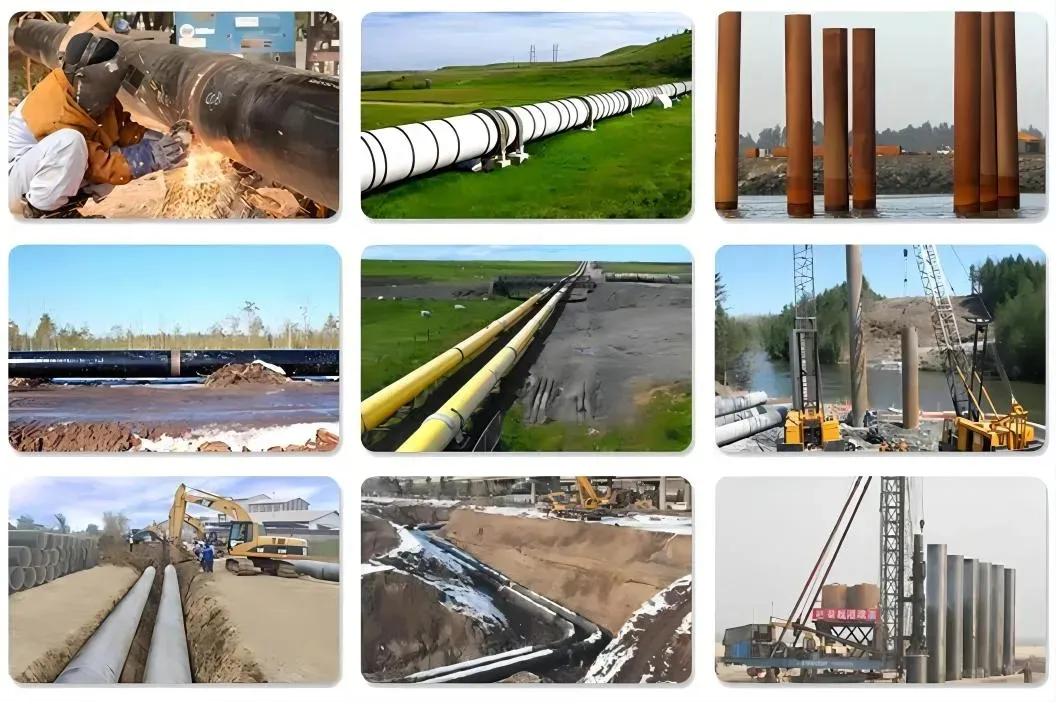

3PE anti-corrosion steel pipe application:
PE anti-corrosion is the most advanced and mature outer wall anti-corrosion technology. It has the advantages of good anti-corrosion performance and long service life (3PE anti-corrosion steel pipe produced by excellent manufacturers can reach 50 years) and is widely used in natural gas transportation, petroleum transportation, heating, refrigeration and other project projects.

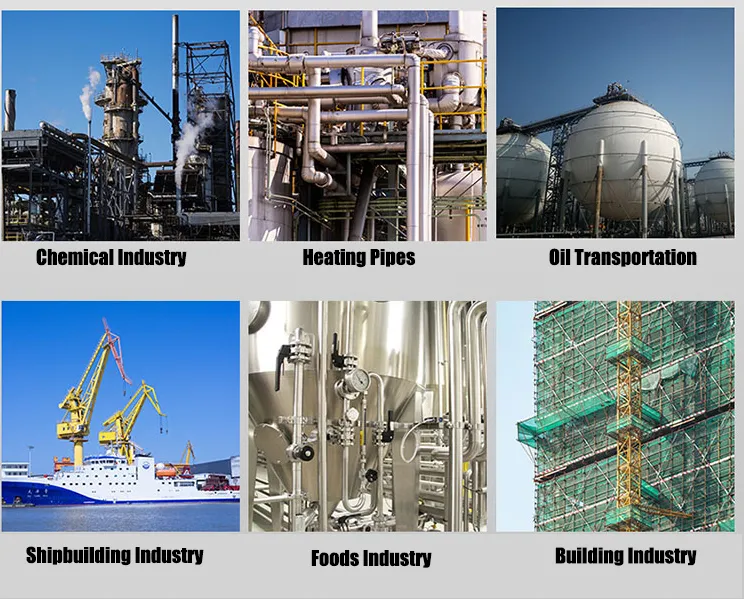

Suitable industry:Petroleum, chemical industry, smelting, electricity, water conservancy, water supply, heating, natural gas supply, ships, large infrastructure, offshore platforms, etc.
Three Layers Fbe 3PE Steel Pipe Oil Transport Pipe Plastic Coating Line
