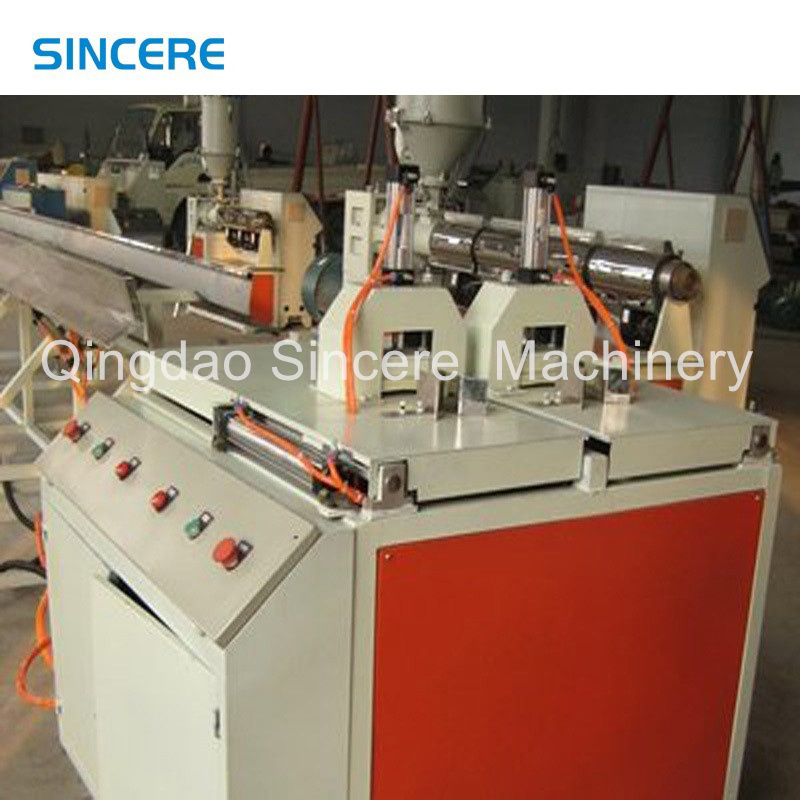

20-63mm Diameter Pvc Threading Pipe Machine Pvc Double Pipe Extruder Machine

Product Description:

PVC Pipe Extrusion Production Making Line Machine

1, Company PVC/CPVC power pipe extruder PVC/UPVC water supply pipe drainage pipe production line cable pipe production equipment is mainly used in the production of agricultural water supply and drainage, building water supply and drainage, power cable cables and other aspects and a variety of pipe diameter, wall thickness of plastic PVC pipe.

2, The unit consists of a conical twin screw extruder, a hollow box (cooling water tank), a die (or an internal pressure die), a drawing machine, a cutting machine, and a flaring machine (tilting rack).

3, Screw extruder and tractor adopt imported AC frequency conversion speed regulating device, vacuum pump and traction motor are made of high quality products.

4, The tractor has two claws, three claws, four claws, six claws, eight claws and other traction methods.

5, Saw blade cutting or planetary cutting can be selected, with meter meter and thickening device.

6, The planetary cutting machine adopts automatic computer numerical control, which has the advantages of easy operation and reliable performance.

7, The unit has reliable performance and high productivity. The company can according to customer requirements, with different configurations. Our company provides formulation technology and other support.

Features:

Characteristic:

1. The surface hardness and tensile strength of the pipe are excellent, and the pipeline safety factor is high. Good aging resistance, normal service life can reach more than 50 years.

2. The pipeline has excellent corrosion resistance to inorganic acid, alkali and salt, and is suitable for industrial sewage discharge and transportation.

3. The friction coefficient of the pipeline is small, the water flow is smooth, it is not easy to plug, and the maintenance workload is less.

4. The material has high oxygen index and self-extinguishing performance.

5. The connection of pipe and pipe fittings can be bonded, the construction method is simple, the operation is convenient, and the installation efficiency is high.

Technical Parameters:

Model: PVC63, PVC160, PVC250, PVC315, PVC450, PVC630

Pipe diameter (mm): 16-63, 75-160, 110-250, 160-315, 200-450, 315-630

Vacuum forming length (mm): 6000 (for all models)

Degree of vacuum (Mpa): -0.03～0.08 (for all models)

• Max hauling force (N): 10000 (PVC63), 15000 (PVC160), 20000 (PVC250), 25000 (PVC315), 30000 (PVC450), 50000 (PVC630)
• Hauling speed (m/min max): 10 (PVC63), 6 (PVC160), 4 (PVC250), 3 (PVC315), 2 (PVC450), 1.4 (PVC630)
• Effective hauling length (mm): 1000 (PVC63), 1500 (PVC160, PVC250, PVC315), 1800 (PVC450), 2400 (PVC630)

• Compressed air consumption (m3/h): 0.4 (PVC63), 0.6 (PVC160), 1.0 (PVC250), 1.2 (PVC315), 1.5 (PVC450), 2.0 (PVC630)
• Refilled water volume (m3/h): 5 (PVC63), 6 (PVC160), 7 (PVC250), 8 (PVC315), 9 (PVC450), 12 (PVC630)
• Line length (m): 20 (PVC63), 22 (PVC160), 30 (PVC250, PVC315), 36 (PVC450), 42 (PVC630)

Applications:

Sincere Plastic Pipe Extrusion Line (Model: SM-PVC200) is a top-of-the-line product that is designed and manufactured in China. With a CE certification, this new machinery is highly efficient and ideal for a variety of applications.

The Plastic Pipe Extrusion Line is perfect for producing a wide range of plastic pipes, tubes, and profiles. Its extrusion capacity of 80-300kg/h makes it suitable for both small-scale and large-scale production needs. Whether you are in the construction, agricultural, or plumbing industry, this machinery can meet your demands effectively.

One of the key features of the Sincere Plastic Pipe Extrusion Line is its water cooling system, which ensures consistent performance and enhances the efficiency of the production process. The machinery is designed to operate under 220-420V/3phase conditions, making it versatile and adaptable to different work environments.

The Pipe Extrusion Production Line by Sincere is perfect for various occasions and scenarios. It can be used in factories, workshops, and manufacturing plants to produce high-quality plastic pipes for different applications. Whether you are manufacturing drainage pipes, water supply pipes, or gas pipes, this machinery can deliver exceptional results.

Overall, the Sincere Plastic Pipe Extrusion Line is a reliable and high-performance solution for your plastic extrusion needs. Its advanced features, high efficiency, and versatility make it a valuable asset for any business looking to enhance its production capabilities in the plastic industry.

Support and Services:

Our Plastic Pipe Extrusion Line product comes with comprehensive technical support and services to ensure the smooth operation and maintenance of the equipment. Our team of experts is available to provide assistance with installation, troubleshooting, and any technical inquiries that may arise.

Additionally, we offer training programs for operators and maintenance staff to optimize the performance and efficiency of the extrusion line. Our service team is committed to delivering prompt and effective solutions to meet the needs of our customers and ensure maximum uptime for their production processes.

Packing and Shipping:

Product Packaging:

The Plastic Pipe Extrusion Line is carefully packaged in durable and protective materials to ensure safe transportation. Each component is securely wrapped and padded to prevent any damage during shipping.

Shipping:

We offer reliable and efficient shipping services for the Plastic Pipe Extrusion Line. Once your order is confirmed, our team will carefully handle the packaging and ensure timely delivery to your specified location. Tracking information will be provided so you can monitor the progress of your shipment.

FAQ:

Q: What is the brand name of this Plastic Pipe Extrusion Line?

A: The brand name is Sincere.

Q: What is the model number of this Plastic Pipe Extrusion Line?

A: The model number is SM-PVC200.

Q: Where is this Plastic Pipe Extrusion Line manufactured?

A: This product is made in China.

Q: Does this Plastic Pipe Extrusion Line have any certification?

A: Yes, it is certified with CE.

Q: What type of pipes can be produced using this Plastic Pipe Extrusion Line?

A: This extrusion line is suitable for producing PVC pipes.
