Product Description:
Company PVC/CPVC power pipe extruder PVC/UPVC water supply pipe drainage pipe production line cable pipe production equipment is mainly used in the production of agricultural water supply and drainage, building water supply and drainage, power cable cables and other aspects and a variety of pipe diameter, wall thickness of plastic PVC pipe.

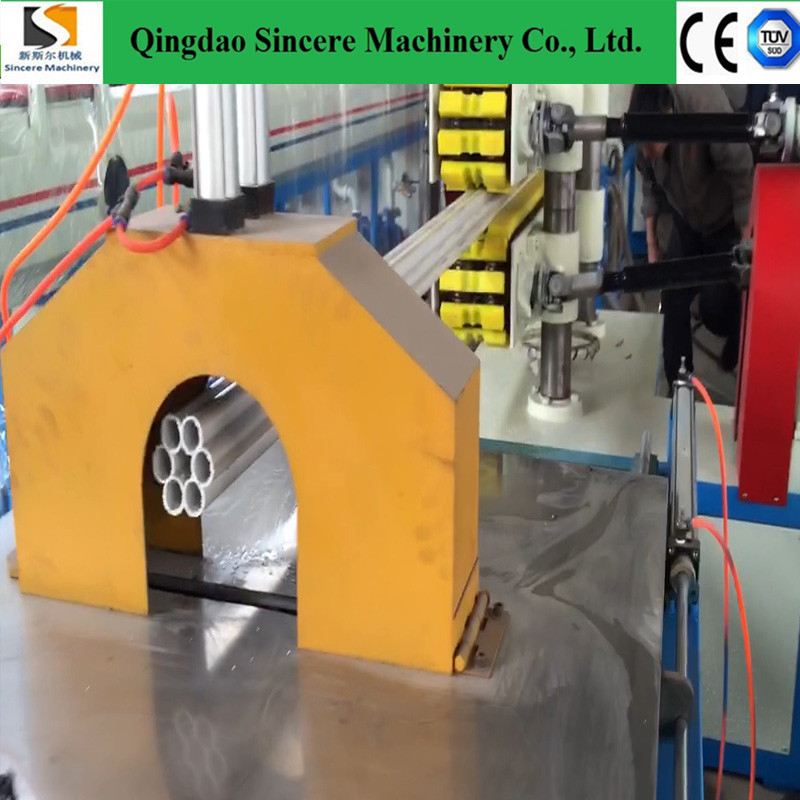

The unit consists of a conical twin screw extruder, a hollow box (cooling water tank), a die (or an internal pressure die), a drawing machine, a cutting machine, and a flaring machine (tilting rack).
Screw extruder and tractor adopt imported AC frequency conversion speed regulating device, vacuum pump and traction motor are made of high-quality products.
The tractor has two claws, three claws, four claws, six claws, eight claws and other traction methods.
Saw blade cutting or planetary cutting can be selected, with a meter and thickening device.
The planetary cutting machine adopts automatic computer numerical control, which has the advantages of easy operation and reliable performance.
The unit has reliable performance and high productivity. The company can according to customer requirements, with different configurations. Our company provides formulation technology and other support.
Features:
Characteristic:
-
The surface hardness and tensile strength of the pipe are excellent, and the pipeline safety factor is high.
Good aging resistance, normal service life can reach more than 50 years.
-
The pipeline has excellent corrosion resistance to inorganic acid, alkali and salt, and is suitable for industrial sewage discharge and transportation.
-
The friction coefficient of the pipeline is small, the water flow is smooth, it is not easy to plug, and the maintenance workload is less.
-
The material has high oxygen index and self-extinguishing performance.
-
The connection of pipe and pipe fittings can be bonded, the construction method is simple, the operation is convenient, and the installation efficiency is high.
Technical Parameters:
Model
PVC63
PVC160
PVC250
PVC315
PVC450
PVC630
Pipe diameter (mm)
16-63
75-160
110-250
160-315
200-450
315-630
Vacuum forming length (mm)
6000
6000
6000
6000
6000
6000
Degree of vacuum (Mpa)
-0.03～0.08
-0.03～0.08
-0.03～0.08
-0.03～0.08
-0.03～0.08
-0.03～0.08
Max hauling force (N)
10000
15000
20000
25000
30000
50000
Hauling speed (m/min/max)
10
6
4
3
2
1.4
Effective hauling length (mm)
1000
1500
1500
1500
1800
2400
Compressed air consumption (m3/h)
0.4
0.6
1.0
1.2
1.5
2.0
Refilled water volume (m3/h)
5
6
7
8
9
12
Line length (m)
20
22
30
30
36
42
Applications:
Sincere Plastic Pipe Extrusion Line model SM-PVC200 is a high-quality equipment designed for the production of extruded plastic pipes. Made in China, this product meets CE certification standards and is suitable for use in various industrial settings.
The SM-PVC200 Extrusion Line is ideal for manufacturing PVC pipes ranging from 50mm to 200mm in diameter. With an extrusion capacity of 80-300kg/h, this equipment is capable of producing a large volume of plastic pipes efficiently.
Whether you are a manufacturer of water pipes, drainage systems, or electrical conduits, the Sincere Plastic Pipe Extrusion Line offers a reliable solution for your production needs. The water cooling system ensures optimal temperature control during the extrusion process, resulting in high-quality and durable plastic tubes.
The versatility of the SM-PVC200 model makes it suitable for a wide range of application occasions and scenarios. From small-scale workshops to large industrial facilities, this PVC Pipe Extrusion Line can meet the demands of different production environments.
Whether you are looking to start a new manufacturing venture or upgrade your existing production line, the Sincere Plastic Pipe Extrusion Line offers a cost-effective and efficient solution. Its new condition and compatibility with 220-420V/3phase power supply make it a reliable choice for businesses seeking to enhance their extruded plastic pipe production capabilities.
Support and Services:
Our Plastic Pipe Extrusion Line product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our team of experts is available to provide assistance with installation, operation, maintenance, and troubleshooting of the extrusion line.
We offer training programs to educate customers on the proper use of the equipment and best practices for maximizing efficiency. Additionally, our service team is ready to address any issues or questions that may arise during the lifespan of the product.
Rest assured that our commitment to quality support and services will help you get the most out of your Plastic Pipe Extrusion Line and maintain seamless operations.
Packing and Shipping:
Product Packaging and Shipping:
Our Plastic Pipe Extrusion Line is carefully packaged to ensure safe delivery to our customers. Each component of the extrusion line is securely wrapped and placed in sturdy boxes to prevent any damage during transit.
For shipping, we partner with reliable courier services to deliver the product to your designated address in a timely manner. You can track your shipment using the provided tracking number to know the status of your delivery.
FAQ:
Q: What is the brand name of this Plastic Pipe Extrusion Line?
A: The brand name is Sincere.
Q: What is the model number of this Plastic Pipe Extrusion Line?
A: The model number is SM-PVC200.
Q: Where is this Plastic Pipe Extrusion Line manufactured?
A: It is manufactured in China.
Q: Does this Plastic Pipe Extrusion Line have any certifications?
A: Yes, it is CE certified.
Q: What type of pipes can be produced using this Plastic Pipe Extrusion Line?
A: This machine is designed to produce PVC pipes.
