75~160mm PVC Pipe Making Machine Price for Making PVC Pipe Price

Product Description:

1, Company PVC/CPVC power pipe extruder PVC/UPVC water supply pipe drainage pipe production line cable pipe production equipment is mainly used in the production of agricultural water supply and drainage, building water supply and drainage, power cable cables and other aspects and a variety of pipe diameter, wall thickness of plastic PVC pipe.

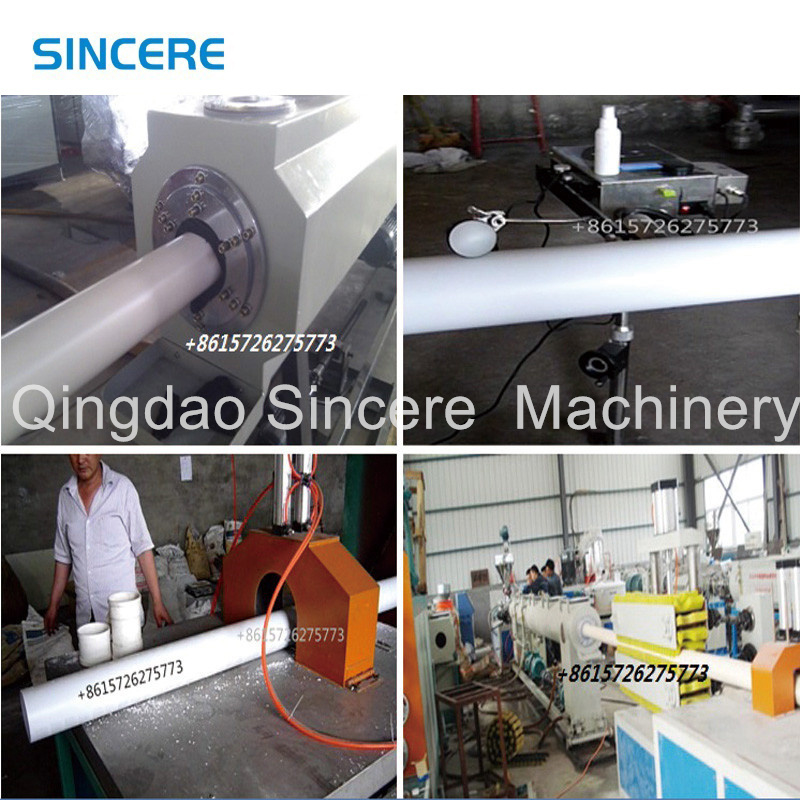

2, The unit consists of a conical twin screw extruder, a hollow box (cooling water tank), a die (or an internal pressure die), a drawing machine, a cutting machine, and a flaring machine (tilting rack).

3, Screw extruder and tractor adopt imported AC frequency conversion speed regulating device, vacuum pump and traction motor are made of high quality products.

4, The tractor has two claws, three claws, four claws, six claws, eight claws and other traction methods.

5, Saw blade cutting or planetary cutting can be selected, with meter meter and thickening device.

6, The planetary cutting machine adopts automatic computer numerical control, which has the advantages of easy operation and reliable performance.

7, The unit has reliable performance and high productivity. The company can according to customer requirements, with different configurations. Our company provides formulation technology and other support.

Features:

1. The surface hardness and tensile strength of the pipe are excellent, and the pipeline safety factor is high. Good aging resistance, normal service life can reach more than 50 years.

2. The pipeline has excellent corrosion resistance to inorganic acid, alkali and salt, and is suitable for industrial sewage discharge and transportation.

3. The friction coefficient of the pipeline is small, the water flow is smooth, it is not easy to plug, and the maintenance workload is less.

4. The material has high oxygen index and self-extinguishing performance.

5. The connection of pipe and pipe fittings can be bonded, the construction method is simple, the operation is convenient, and the installation efficiency is high.

Technical Parameters:

Model

• PVC63
• PVC160
• PVC250
• PVC315
• PVC450
• PVC630

Pipe diameter(mm)

• 16-63
• 75-160
• 110-250
• 160-315
• 200-450
• 315-630

Vacuum forming length(mm)

• 6000
• 6000
• 6000
• 6000
• 6000
• 6000

Degree of vacuum(Mpa)

• -0.03～0.08
• -0.03～0.08
• -0.03～0.08
• -0.03～0.08
• -0.03～0.08
• -0.03～0.08

Max hauling force(N)

• 10000
• 15000
• 20000
• 25000
• 30000
• 50000

Hauling speed(m/min/max)

• 10
• 6
• 4
• 3
• 2
• 1.4

Effective hauling length(mm)

• 1000
• 1500
• 1500
• 1500
• 1800
• 2400

Compressed air consumption(m3/h)

• 0.4
• 0.6
• 1.0
• 1.2
• 1.5
• 2.0

Refilled water volume(m3/h)

• 5
• 6
• 7
• 8
• 9
• 12

Line length(m)

• 20
• 22
• 30
• 30
• 36
• 42

Applications:

Sincere plastic pipe extrusion line, model SM-PVC200, is a versatile machine that is ideal for a wide range of product application occasions and scenarios. This state-of-the-art equipment is designed for efficiently producing plastic pipes with diameters of 280mm. With a high extrusion capacity ranging from 80 to 300kg/h, it is suitable for various production needs.

The plastic pipe extrusion line from Sincere is perfect for manufacturing plastic pipes for different purposes such as drainage systems, water supply lines, agricultural irrigation, and more. Its CE certification ensures high quality and compliance with international standards.

Originating from Shandong, China, this plastic pipe making machine offers a reliable and efficient solution for businesses in need of a dependable production line. The production speed of 1-20m/min allows for fast and continuous manufacturing, meeting the demands of various industries.

Equipped with water cooling technology, the Sincere plastic pipe extrusion line ensures optimal cooling efficiency during the production process. This feature enhances the quality of the extruded plastic pipes and contributes to a more stable and consistent production output.

Whether you are in the construction, agriculture, or manufacturing industry, the Sincere plastic pipe extrusion line is a valuable investment for enhancing your production capabilities. With its advanced features and high-performance specifications, this machine is suitable for a wide range of extruded plastic pipe production line applications, making it a versatile and essential asset for your business.

Support and Services:

Our Product Technical Support and Services for the Plastic Pipe Extrusion Line include:

- Installation assistance and guidance

- Training for operation and maintenance of the equipment

- Troubleshooting support for any issues that may arise

- Regular maintenance services to ensure optimal performance

- Upgrades and enhancements to keep your extrusion line up-to-date

Packing and Shipping:

Product Packaging:

The Plastic Pipe Extrusion Line is carefully packaged to ensure safe delivery to our customers. Each component is securely wrapped and protected to prevent any damage during transportation.

Shipping:

We offer reliable shipping options for the Plastic Pipe Extrusion Line worldwide. Our team will coordinate the shipping process to ensure timely delivery to your specified location. Customers can track their shipment and receive updates on the shipping status.

FAQ:

Q: What is the brand name of this Plastic Pipe Extrusion Line?

A: The brand name is Sincere.

Q: What is the model number of this Plastic Pipe Extrusion Line?

A: The model number is SM-PVC200.

Q: Where is this Plastic Pipe Extrusion Line manufactured?

A: It is manufactured in China.

Q: Does this Plastic Pipe Extrusion Line come with any certification?

A: Yes, it is CE certified.

Q: What types of pipes can be produced using this Plastic Pipe Extrusion Line?

A: This line is capable of producing various types of plastic pipes including PVC, PE, and PP pipes.
