Product Description:

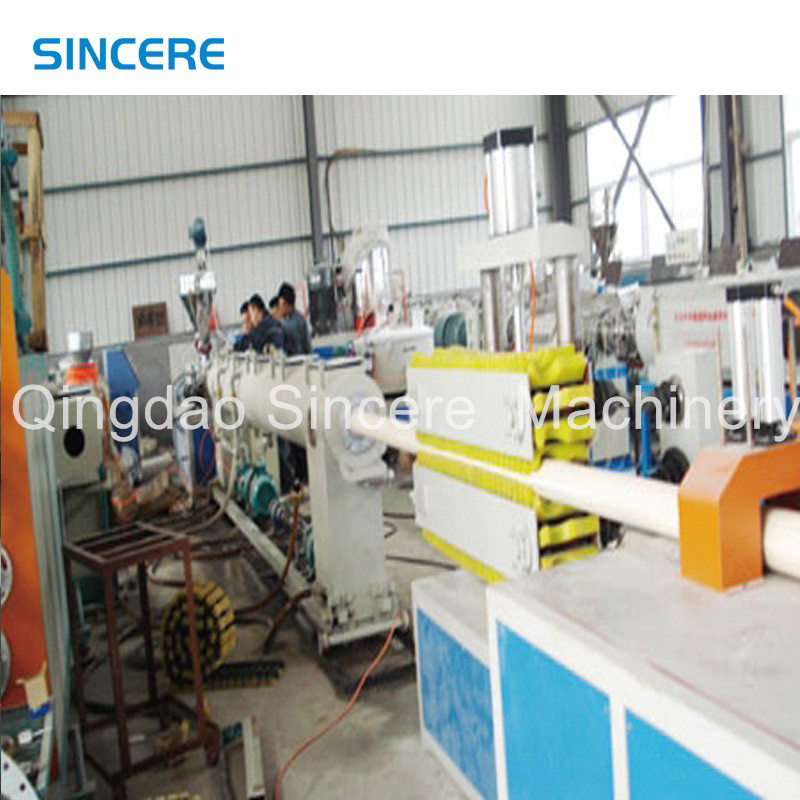

PVC Pipe Extrusion Production Making Line Machine
1, Company PVC/CPVC power pipe extruder PVC/UPVC water supply pipe drainage pipe production line cable pipe production equipment is mainly used in the production of agricultural water supply and drainage, building water supply and drainage, power cable cables and other aspects and a variety of pipe diameter, wall thickness of plastic PVC pipe.
2, The unit consists of a conical twin screw extruder, a hollow box (cooling water tank), a die (or an internal pressure die), a drawing machine, a cutting machine, and a flaring machine (tilting rack).
3, Screw extruder and tractor adopt imported AC frequency conversion speed regulating device, vacuum pump and traction motor are made of high quality products.
4, The tractor has two claws, three claws, four claws, six claws, eight claws and other traction methods.
5, Saw blade cutting or planetary cutting can be selected, with meter meter and thickening device.
6, The planetary cutting machine adopts automatic computer numerical control, which has the advantages of easy operation and reliable performance.
7, The unit has reliable performance and high productivity. The company can according to customer requirements, with different configurations. Our company provides formulation technology and other support
Features:
Characteristic:
-
The surface hardness and tensile strength of the pipe are excellent, and the pipeline safety factor is high.
Good aging resistance, normal service life can reach more than 50 years.
-
The pipeline has excellent corrosion resistance to inorganic acid, alkali and salt, and is suitable for industrial sewage discharge and transportation.
-
The friction coefficient of the pipeline is small, the water flow is smooth, it is not easy to plug, and the maintenance workload is less.
-
The material has high oxygen index and self-extinguishing performance.
-
The connection of pipe and pipe fittings can be bonded, the construction method is simple, the operation is convenient, and the installation efficiency is high.
Technical Parameters:
Model PVC Specifications
Below are the specifications for different models of PVC pipes:
Model PVC63
-
Pipe diameter(mm): 16-63
-
Vacuum forming length(mm): 6000
-
Degree of vacuum(Mpa): -0.03～0.08
-
Max hauling force(N): 10000
-
Hauling speed(m/min/max): 10
-
Effective hauling length(mm): 1000
-
Compressed air consumption(m3/h): 0.4
-
Refilled water volume(m3/h): 5
-
Line length(m): 20
Model PVC160
-
Pipe diameter(mm): 75-160
-
Vacuum forming length(mm): 6000
-
Degree of vacuum(Mpa): -0.03～0.08
-
Max hauling force(N): 15000
-
Hauling speed(m/min/max): 6
-
Effective hauling length(mm): 1500
-
Compressed air consumption(m3/h): 0.6
-
Refilled water volume(m3/h): 6
-
Line length(m): 22
Applications:
Sincere Plastic Pipe Extrusion Line model SM-PVC200 is a high-quality plastic tube manufacturing equipment suitable for a variety of applications. With a production capacity ranging from 50-200mm PVC pipes, this machine is perfect for producing plastic tubes in sizes ranging from 16mm to 50mm. The equipment is brand new and comes with CE certification, guaranteeing its quality and compliance with international standards.
Manufactured in Shandong, China, this Plastic Pipe Extrusion Line is designed to meet the demands of various industries requiring plastic tube manufacturing equipment. The total install power of around 420KW ensures efficient and reliable operation, making it a cost-effective solution for businesses.
The SM-PVC200 Plastic Pipe Extrusion Line can be used in a wide range of product application occasions and scenarios. It is ideal for manufacturing PVC pipes used in plumbing, irrigation, drainage systems, and more. The machine's versatility allows for the production of pipes in different sizes, catering to various project requirements.
Whether you are a construction company, piping manufacturer, or involved in the water management industry, the Sincere Plastic Pipe Extrusion Line offers a reliable and efficient solution for your plastic tube extrusion needs. Invest in this equipment to streamline your production process and meet the growing demand for high-quality plastic tubes.
Support and Services:
Our Plastic Pipe Extrusion Line product comes with comprehensive technical support and services to ensure smooth operation and maximum productivity. Our team of experts is available to provide troubleshooting assistance, maintenance guidance, and training to operators. Additionally, we offer installation services and can customize the extrusion line to suit specific production requirements. With our commitment to customer satisfaction, you can rely on us for reliable support throughout the lifespan of your equipment.
Packing and Shipping:
Product Packaging:
Our Plastic Pipe Extrusion Line is carefully packaged to ensure safe delivery to our customers. Each component is securely wrapped and protected to prevent any damage during transit. The main machine is enclosed in a sturdy wooden crate, while smaller parts and accessories are individually boxed and cushioned for added protection.
Shipping:
We offer worldwide shipping for our Plastic Pipe Extrusion Line. Once an order is placed, our logistics team works diligently to arrange for prompt delivery to the designated address. We partner with reliable shipping carriers to ensure timely and efficient transportation. Customers can track their shipment using the provided tracking number to monitor the progress of their delivery.
FAQ:
Q: What is the brand name of this Plastic Pipe Extrusion Line?
A: The brand name is Sincere.
Q: What is the model number of this Plastic Pipe Extrusion Line?
A: The model number is SM-PVC200.
Q: Where is this Plastic Pipe Extrusion Line manufactured?
A: This product is manufactured in China.
Q: Does this Plastic Pipe Extrusion Line have any certifications?
A: Yes, this product is CE certified.
Q: What type of pipes can be produced using this Plastic Pipe Extrusion Line?
A: This extrusion line is designed to produce PVC pipes of various sizes.
