Conical Twin Screw Extruder PVC Pipe Extrusion Line with OD 50-630mm

Product Description:

Our company offers a PVC/CPVC power pipe extruder that is essential for PVC/UPVC water supply pipe drainage pipe production line cable pipe production equipment. This equipment serves multiple purposes including agricultural water supply and drainage, building water supply and drainage, power cable cables, and more. It is capable of producing plastic PVC pipes of various diameters and wall thicknesses.

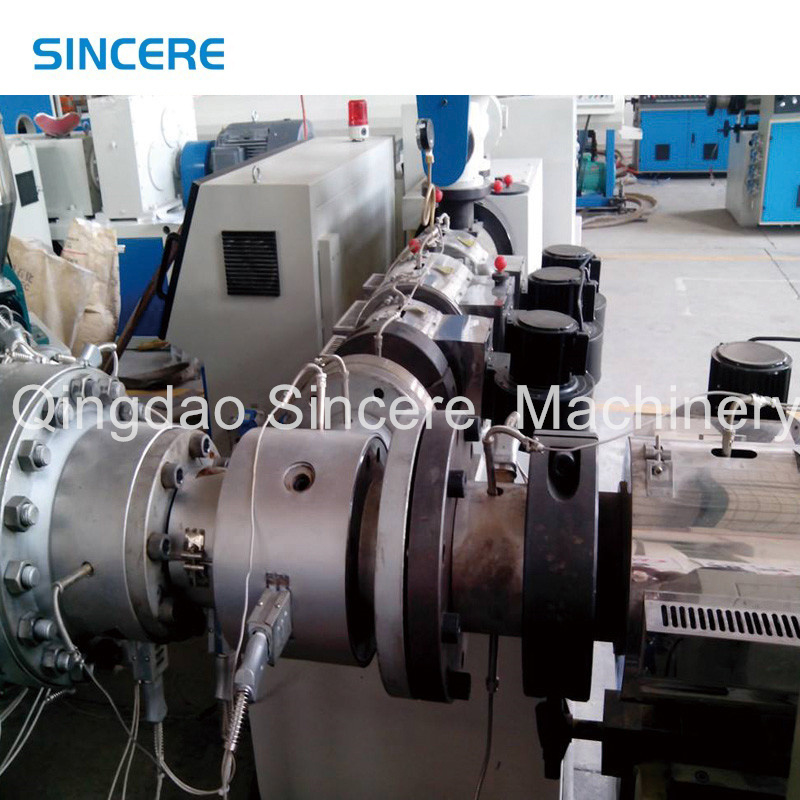

The production line consists of a conical twin screw extruder, a hollow box (cooling water tank), a die (or internal pressure die), a drawing machine, a cutting machine, and a flaring machine (tilting rack).

• The screw extruder and tractor are equipped with imported AC frequency conversion speed regulating devices.
• The vacuum pump and traction motor are of high-quality imported products.
• The tractor offers various traction methods including two claws, three claws, four claws, six claws, and eight claws.
• Customers can choose between saw blade cutting or planetary cutting, along with options for a meter meter and thickening device.
• The planetary cutting machine features automatic computer numerical control for easy operation and reliable performance.

The unit is known for its reliable performance and high productivity. We are able to customize the configuration according to the specific requirements of our customers. Additionally, our company provides formulation technology and other support services to ensure the success of your production process.

Features:

Characteristic:

1. The surface hardness and tensile strength of the pipe are excellent, and the pipeline safety factor is high.
Good aging resistance, normal service life can reach more than 50 years.

2. The pipeline has excellent corrosion resistance to inorganic acid, alkali and salt, and is suitable for industrial sewage discharge and transportation.

3. The friction coefficient of the pipeline is small, the water flow is smooth, it is not easy to plug, and the maintenance workload is less.

4. The material has high oxygen index and self-extinguishing performance.

5. The connection of pipe and pipe fittings can be bonded, the construction method is simple, the operation is convenient, and the installation efficiency is high.

Technical Parameters:

Model:
PVC63
PVC160
PVC250
PVC315
PVC450
PVC630

Pipe diameter (mm):
16-63
75-160
110-250
160-315
200-450
315-630

Vacuum forming length (mm):
6000 (all models)

Degree of vacuum (Mpa):
-0.03～0.08 (all models)

Max hauling force (N):
10000 (PVC63)
15000 (PVC160)
20000 (PVC250)
25000 (PVC315)
30000 (PVC450)
50000 (PVC630)

Hauling speed (m/min/max):
10 (PVC63)
6 (PVC160)
4 (PVC250)
3 (PVC315)
2 (PVC450)
1.4 (PVC630)

Effective hauling length (mm):
1000 (PVC63)
1500 (PVC160, PVC250, PVC315)
1800 (PVC450)
2400 (PVC630)

Compressed air consumption (m3/h):
0.4 (PVC63)
0.6 (PVC160)
1.0 (PVC250)
1.2 (PVC315)
1.5 (PVC450)
2.0 (PVC630)

Refilled water volume (m3/h):
5 (PVC63)
6 (PVC160)
7 (PVC250)
8 (PVC315)
9 (PVC450)
12 (PVC630)

Line length (m):
20 (PVC63)
22 (PVC160)
30 (PVC250, PVC315)
36 (PVC450)
42 (PVC630)

Applications:

Sincere Plastic Pipe Extrusion Line, model SM-PVC200, is a high-quality machine designed for producing plastic pipes. This product is manufactured in China and comes with a CE certification, ensuring its adherence to safety and quality standards.

The Plastic Pipe Extrusion Line is versatile and suitable for a variety of applications due to its diameters of 280mm and pipe range of 16/20/25/32/40/50mm. It is an ideal choice for businesses involved in plastic pipe manufacturing.

Common Product Application Occasions and Scenarios for the Plastic Pipe Extrusion Line include:

- Industrial Settings: The machine can be used in industrial settings for large-scale production of plastic pipes. Industries such as construction, agriculture, and plumbing can benefit from the efficiency and reliability of this Plastic Pipe Making Machine.

- Manufacturing Facilities: Manufacturing facilities that specialize in extruded plastic pipe production can utilize the Plastic Pipe Production Line to streamline their operations and meet production targets effectively.

- Construction Sites: Construction companies can use the Plastic Pipe Extrusion Line on-site to produce custom lengths of plastic pipes for various applications such as drainage systems, water supply, and more.

The Plastic Pipe Extrusion Line from Sincere is designed to operate under a voltage condition of 220-420V/3phase, making it suitable for a wide range of working environments. With a total installed power of around 420KW, this machine offers high performance and energy efficiency.

Whether you are looking to expand your plastic pipe manufacturing capabilities or enhance your production efficiency, the Sincere Plastic Pipe Extrusion Line is a reliable and cost-effective solution for your business needs.

Support and Services:

Our Plastic Pipe Extrusion Line product comes with comprehensive technical support and services to ensure smooth operation and optimal performance. Our team of experts is available to assist with installation, setup, troubleshooting, and maintenance of the extrusion line.

We offer training programs to educate operators on best practices for operating the equipment efficiently and safely. Additionally, our support services include regular maintenance checks, spare parts availability, and technical guidance to address any issues that may arise.

With our dedicated technical support team, you can rely on us to provide timely assistance and expertise to keep your Plastic Pipe Extrusion Line running smoothly and efficiently.

Packing and Shipping:

Product Packaging: Each Plastic Pipe Extrusion Line is carefully packaged to ensure safe transportation. The components are securely wrapped and protected to prevent any damage during shipping.

Shipping: We offer reliable and efficient shipping services for the Plastic Pipe Extrusion Line. Our team ensures that the product is delivered to your specified location in a timely manner, allowing you to start using the equipment as soon as possible.

FAQ:

Q: What is the brand name of this Plastic Pipe Extrusion Line?

A: The brand name is Sincere.

Q: What is the model number of this Plastic Pipe Extrusion Line?

A: The model number is SM-PVC200.

Q: Where is this Plastic Pipe Extrusion Line manufactured?

A: It is manufactured in China.

Q: Does this Plastic Pipe Extrusion Line come with any certification?

A: Yes, it is CE certified.

Q: What type of pipes can be produced using this Plastic Pipe Extrusion Line?

A: This extrusion line is designed to produce PVC pipes of various sizes and specifications.
