ABS Plastic PVC Profile Extrusion Machine Furniture Edge Banding Extrusion Line

Product Details

Place of Origin: China

Brand Name: Sincere

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Delivery Time: 7-15 work days

Payment Terms: L/C,T/T

Supply Ability: 20 sets per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                Furniture PVC Profile Extrusion Machine, Edge Banding PVC Profile Extrusion Machine, ABS Plastic edge banding extrusion line


Warranty:	1 Year	Model:	Twin Screw Extruder
Feeding Method:	Automatic Feeding	Cutting Method:	Saw Cutting
Product Size:	Customizable	Heating Zones:	6
Control System:	PLC Control	Cooling Zones:	3
Main Motor Power:	37 KW	Extrusion Capacity:	100-150 Kg/h
Screw Diameter:	65 Mm	Material:	PVC And Wood Powder

Warranty:	1 Year
Model:	Twin Screw Extruder
Feeding Method:	Automatic Feeding
Cutting Method:	Saw Cutting
Product Size:	Customizable
Heating Zones:	6
Control System:	PLC Control
Cooling Zones:	3
Main Motor Power:	37 KW
Extrusion Capacity:	100-150 Kg/h
Screw Diameter:	65 Mm
Material:	PVC And Wood Powder

Product Description

ABS Plastic PVC Profile Extrusion Machine Furniture Edge Banding Extrusion Line

Product Description

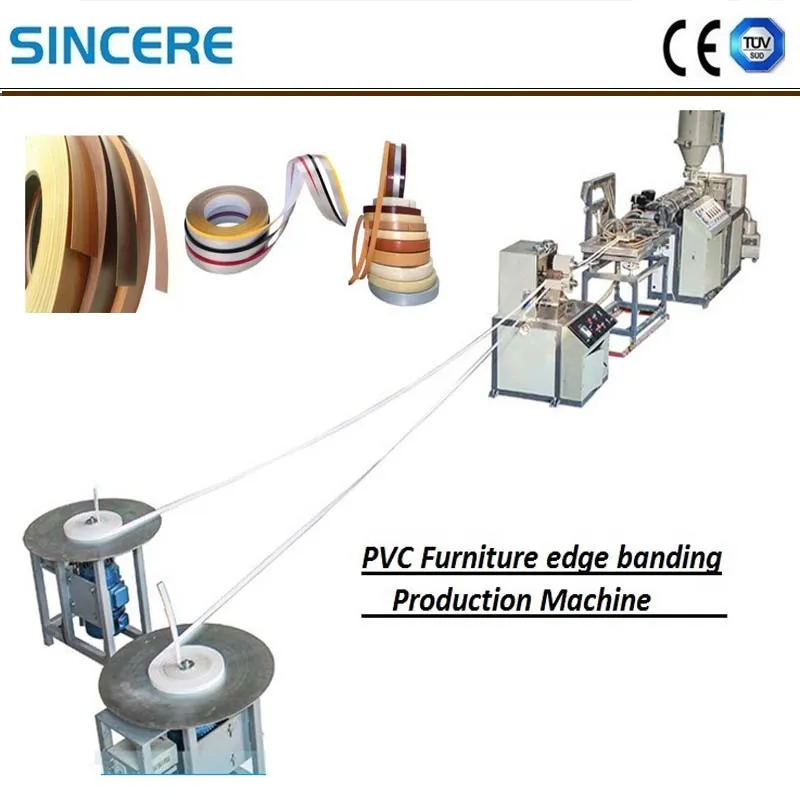

PVC ABS edge banding Extrusion Machine Line with Three Color Printer.

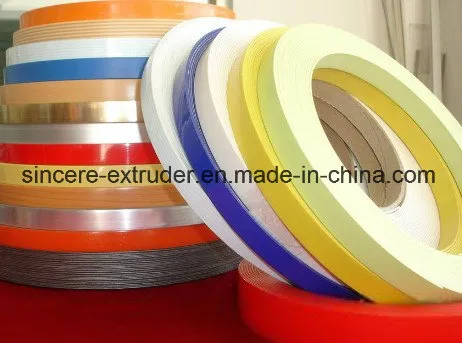

1. PVC Edge Banding:
PVC edge banding has the characteristics of heat resistance, oil resistance and strength, hardness and bendability. Its surface performance is good, wearable and can be cut; the surface effect is also good, its pattern and color can be close to the natural wood color of logs , There may be other color patterns; the bottom of the screen after the treatment or coating treatment of PVC edge banding effect is also very good.

PVC edge band is widely used in cabinets, wardrobe, doors and windows, office furniture, shelves, machinery and other fields.

2. Equipment list

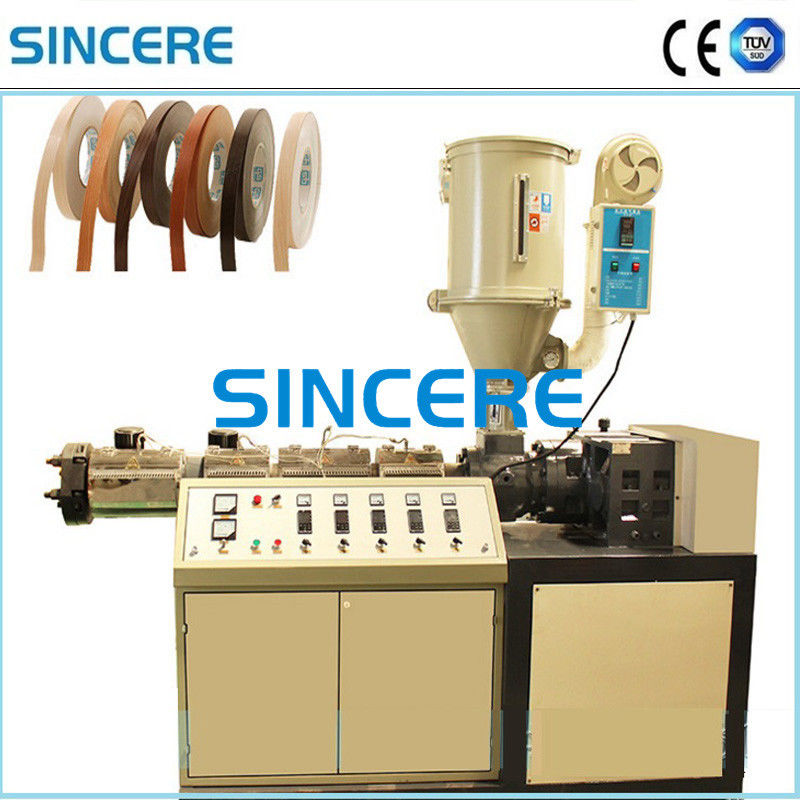

1	SJ-65/25 Single screw extruder for PVC or ABS SJSZ-51\|105 double screw wxtruder for pvc powder.	1set
2	Die Mold	1set
3	Embossing unit (emboss roll not included,as per client sample)	1set
4	Water cooling tank	1set
5	Haul-off&gluing unit (with length metering unit)	1set
6	Coiling machine	1 set
7	Electrical appliances	1 set
8.Auxiliary machines	8.1 Three colors printing machine	1 set
	8.2 SJSZ-65/132 PVC granules making machine	1 set
	8.3 SHR-200/500 or SHR-300/600mixer for granule making machine	1 set
	8.4 SWP-360 plastic crusher	1 set
	8.5 SMP-500 Milling Machine	1 set

3. Technical Parameters

Suitable resin	PVC granules, ABS PP PE granules. PVC Powder.
Extruder Model	Double screw extruder SJSZ-51\|105 Single Screw extruder 45\|28, 65\|25, 65\|28
Edge band width	17-45mm
Edge band thickness	0.4-2mm
Line speed	2-15m/min
Max output	40-130kg/h

4. Machinery electric parts details:

Temperatue meter	Omron or RKC
Contactor
Relay
Transducer	Holip
Power light, button
Inveter	ABB
Low voltage electrical appliances	Siemense

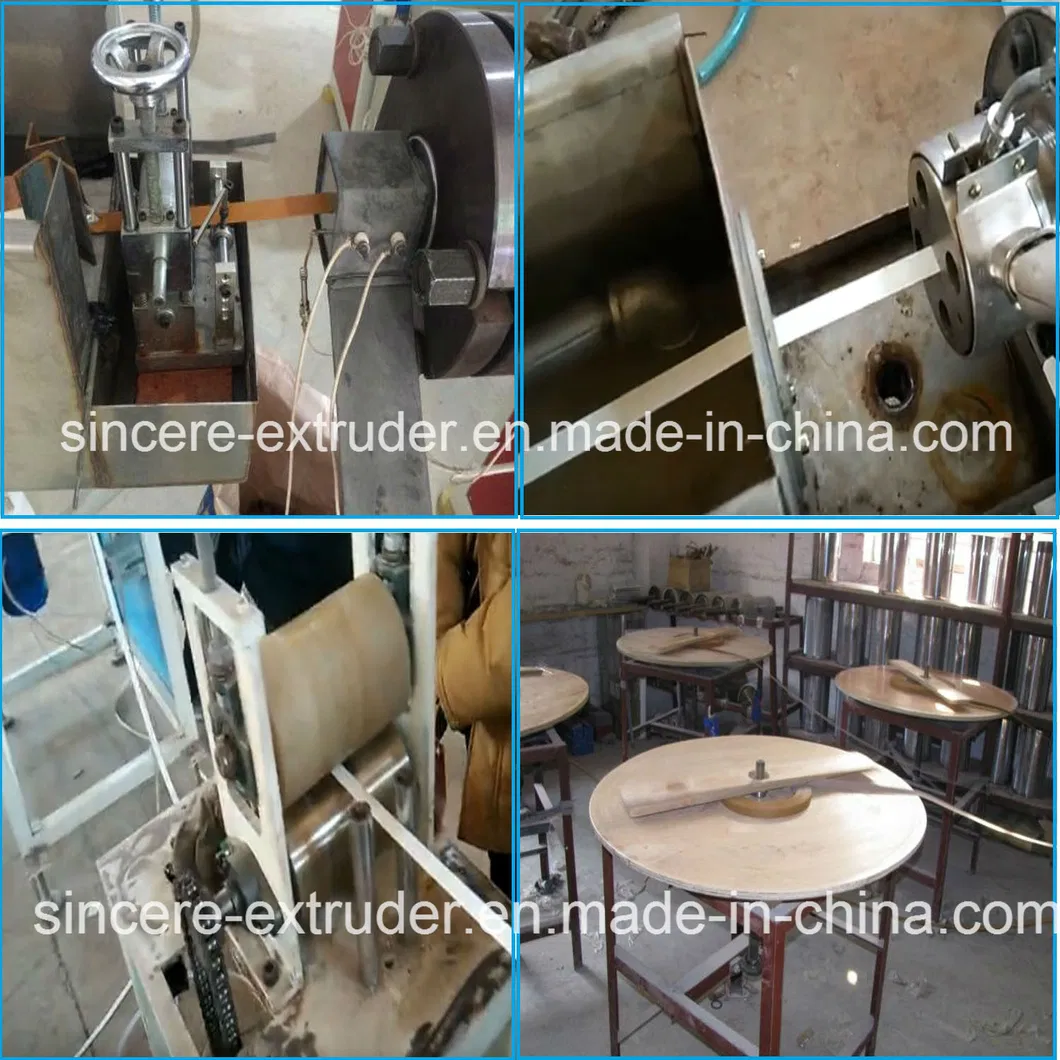

5.Machine Show
PVC Edge Banding Machine ABS Edge Banding Furniture Plastic Edge Banding Extrusion Machine
