PVC Edge Banding Furniture Protection Tape Extruder Machine

Product Details

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PVC Edge Banding Machine, PVC Edge Banding Extruder Machine, Furniture Protection Tape Extruder Machine


Thickness:	2-12mm	Condition:	New
Model:	XYZ-1000	Feeding Method:	Automatic Feeding
Capacity:	100-150kg/h	Processed Plastic:	PMMA ASA PVC
Automatic Grade:	Automatic	Product Size:	Customizable
Power:	45KW	Elements:	DELIXI
Frequency Inverter:	ABB	Board Thickness:	5-50mm
Core Components:	PLC, Engine, Gearbox	Temperature Controller:	Omron
Raw Material:	PVC+wood+caco3+additive

Thickness:	2-12mm
Condition:	New
Model:	XYZ-1000
Feeding Method:	Automatic Feeding
Capacity:	100-150kg/h
Processed Plastic:	PMMA ASA PVC
Automatic Grade:	Automatic
Product Size:	Customizable
Power:	45KW
Elements:	DELIXI
Frequency Inverter:	ABB
Board Thickness:	5-50mm
Core Components:	PLC, Engine, Gearbox
Temperature Controller:	Omron
Raw Material:	PVC+wood+caco3+additive

Product Description

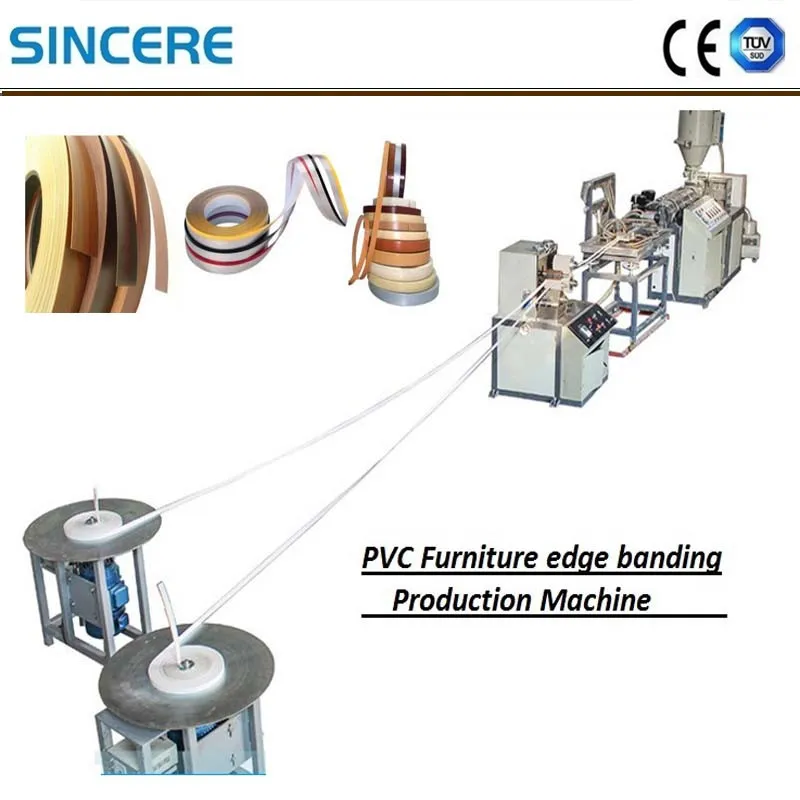

PVC ABS edge banding Extrusion Machine Line with Three Color Printer.

1. PVC Edge Banding:
PVC edge banding has the characteristics of heat resistance, oil resistance and strength, hardness and bendability. Its surface performance is good, wearable and can be cut; the surface effect is also good, its pattern and color can be close to the natural wood color of logs , There may be other color patterns; the bottom of the screen after the treatment or coating treatment of PVC edge banding effect is also very good.
PVC edge band is widely used in cabinets, wardrobe, doors and windows, office furniture, shelves, machinery and other fields.

2. Equipment list

1	SJ-65/25 Single screw extruder for PVC or ABS SJSZ-51\|105 double screw wxtruder for pvc powder.	1set
2	Die Mold	1set
3	Embossing unit (emboss roll not included,as per client sample)	1set
4	Water cooling tank	1set
5	Haul-off&gluing unit (with length metering unit)	1set
6	Coiling machine	1 set
7	Electrical appliances	1 set
8.Auxiliary machines	8.1 Three colors printing machine	1 set
	8.2 SJSZ-65/132 PVC granules making machine	1 set
	8.3 SHR-200/500 or SHR-300/600mixer for granule making machine	1 set
	8.4 SWP-360 plastic crusher	1 set
	8.5 SMP-500 Milling Machine	1 set

3. Technical Parameters

Suitable resin	PVC granules, ABS PP PE granules. PVC Powder.
Extruder Model	Double screw extruder SJSZ-51\|105 Single Screw extruder 45\|28, 65\|25, 65\|28
Edge band width	17-45mm
Edge band thickness	0.4-2mm
Line speed	2-15m/min
Max output	40-130kg/h

4. Machinery electric parts details:

Temperatue meter	Omron or RKC
Contactor
Relay
Transducer	Holip
Power light, button
Inveter	ABB
Low voltage electrical appliances	Siemense

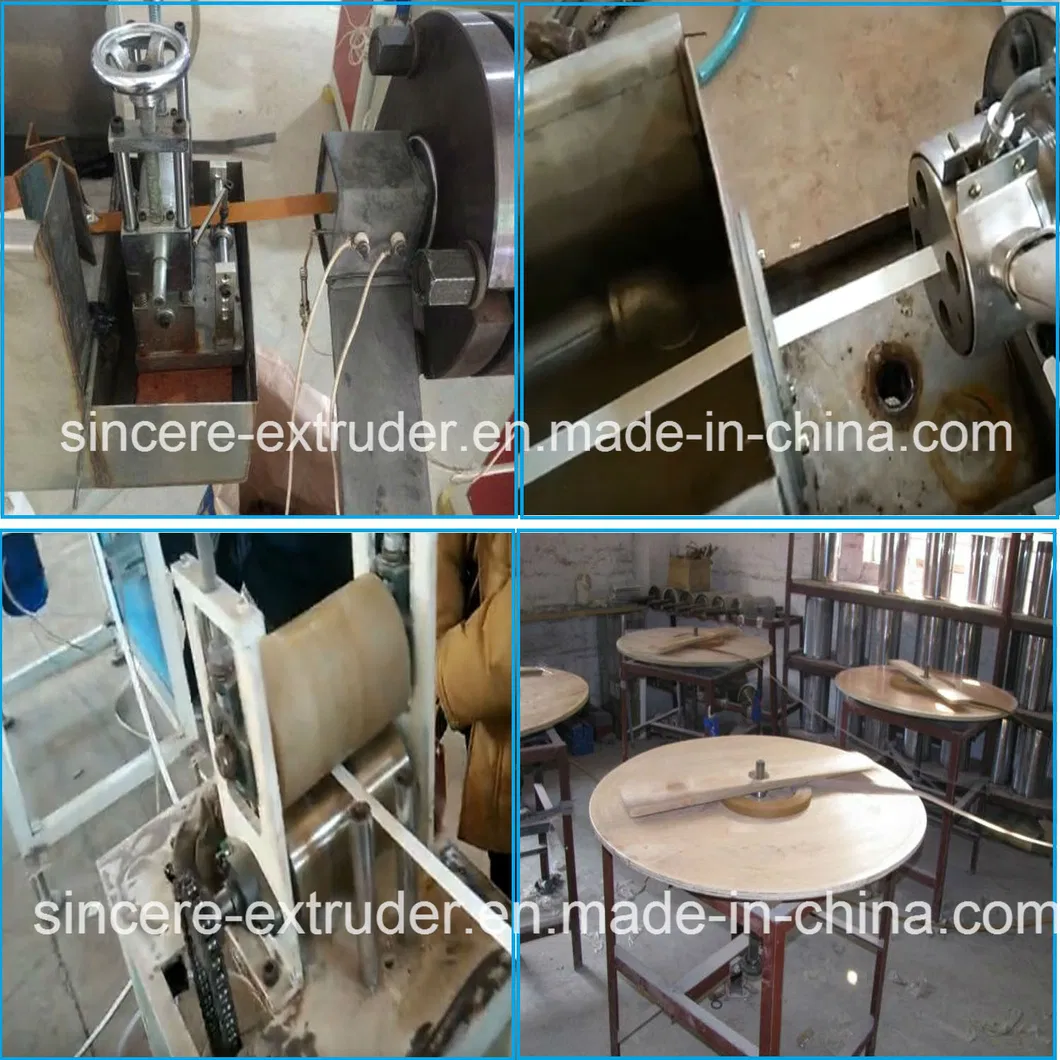

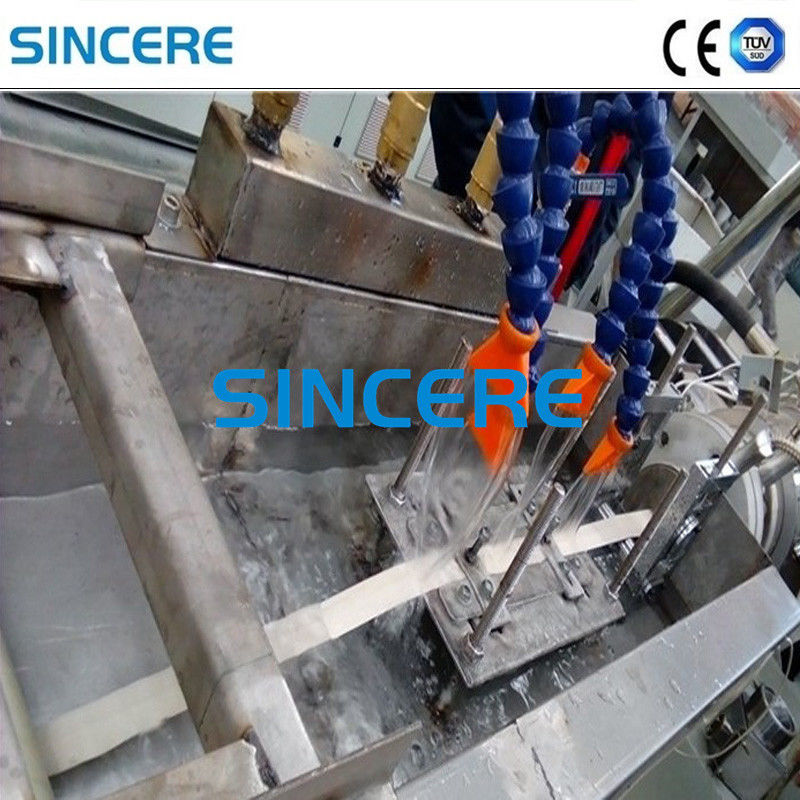

5.Machine Show
PVC Edge Banding Furniture Protection Tape Extruder Machine 0
