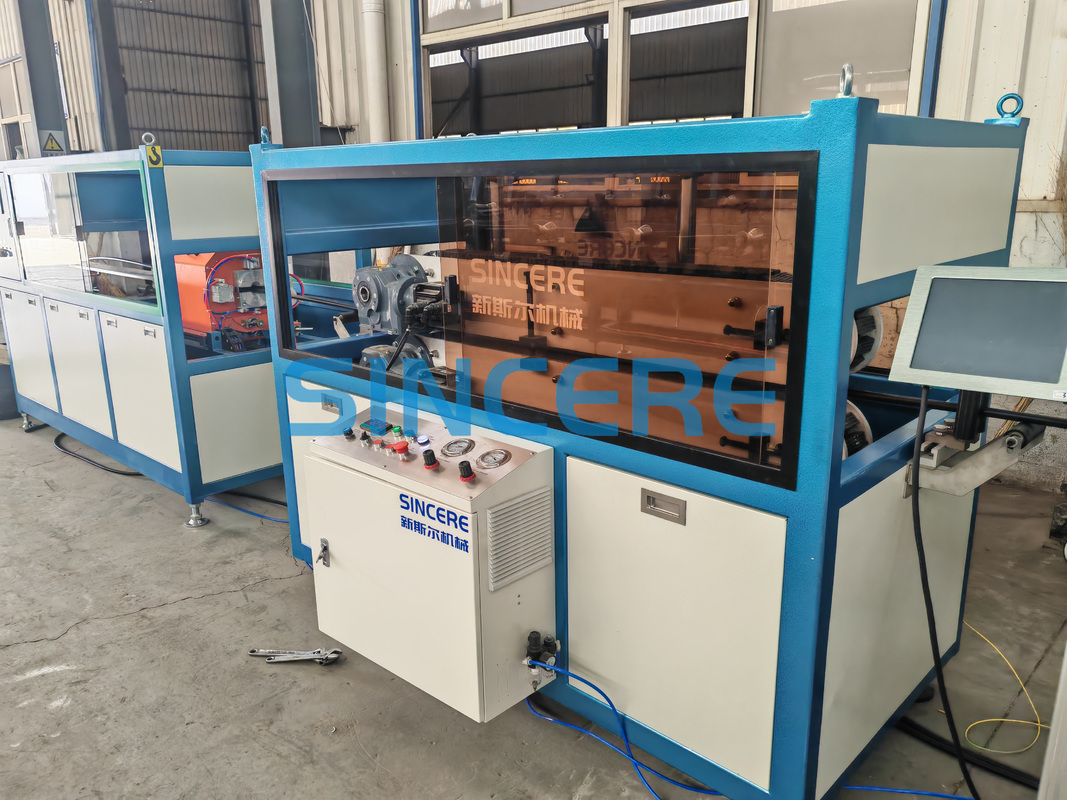

20-1200mm Plastic PPR HDPE PU Tube Extrusion Line with PLC Electric Control

Product Description:

The 20-1200mm HDPE pipe production line is a specialized production line covering small to medium-to-large diameter HDPE pipes, primarily used for pipe processing in municipal water supply and drainage, gas transmission, and industrial fluid transportation.

• Extruder: Employs a single-screw or twin-screw extruder with an optimized screw length-to-diameter ratio, achieving efficient plasticization and uniform melting of HDPE raw materials.
• Die System: Equipped with dedicated HDPE pipe dies, featuring an optimized die flow channel design to ensure stable melt extrusion and adaptability to molding requirements of different diameters from 20-1200mm.
• Cooling and Shaping System: Includes a vacuum shaping box and a spray cooling tank, utilizing a dual effect of vacuum adsorption and spray cooling to ensure dimensional accuracy and surface smoothness of the pipes.
• Traction Machine: Utilizes a crawler-type or block-type traction system, providing uniform traction force and matching the traction speed to different pipe diameters, synchronized with the extrusion speed.

Equipped with a planetary cutter or saw blade cutter, enabling precise, fixed-length cutting with clean, burr-free edges.

Includes a raw material dryer, feeding machine, metering feeder, printing machine, winding machine (for small diameter pipes) or idler conveyor line (for large diameter pipes).

• Strong Diameter Adaptability: By changing the mold, adjusting the traction speed and extrusion parameters, a full range of HDPE pipes from 20mm to 1200mm can be flexibly produced.
• High Efficiency and Stability: The extruder has high plasticizing efficiency, and the production line has a high degree of automation, enabling continuous and stable production and reducing downtime losses.
• Good Precision Control: Vacuum shaping and traction synchronous control technology ensures that the pipe's outer diameter and wall thickness tolerances meet industry standards, with minimal roundness error.
• Environmentally Friendly and Energy-Saving: Utilizes energy-efficient motors and heating systems, resulting in low energy consumption and meeting environmental protection requirements.

Applicable Scenarios: Municipal water supply and drainage projects, gas pipeline laying, industrial pure water transportation, agricultural irrigation, underground sewage discharge, etc.

Raw Material Requirements: Compatible with HDPE resin (such as PE80, PE100 grade) with good melt flow rate and crack resistance to meet the mechanical strength requirements of the pipe.

Features:

The core features of this equipment are its wide diameter coverage, high molding precision, high efficiency, and stability, and strong adaptability, which are briefly described below:

Flexible Diameter Adaptability: It is compatible with the production of HDPE pipes from 20-1200mm. By changing the mold and adjusting parameters, it can switch between small-diameter residential pipes and large-diameter municipal pipes.

Reliable Molding Quality: Optimized mold flow channels and vacuum forming technology ensure accurate pipe dimensions, smooth surfaces, and wall thickness and roundness that meet industry standards.

Highly Efficient and Energy-Saving Production: High degree of automation, excellent extruder plasticizing efficiency, continuous and stable production, and equipped with an energy-saving system, resulting in low energy consumption and environmental friendliness.

Diverse Application Scenarios: It can process different grades of HDPE raw materials such as PE80/PE100, meeting the pipe needs of various scenarios such as water supply and drainage, gas transmission, and industrial fluids.

Technical Parameters:
